For a monitored 14K resin plate

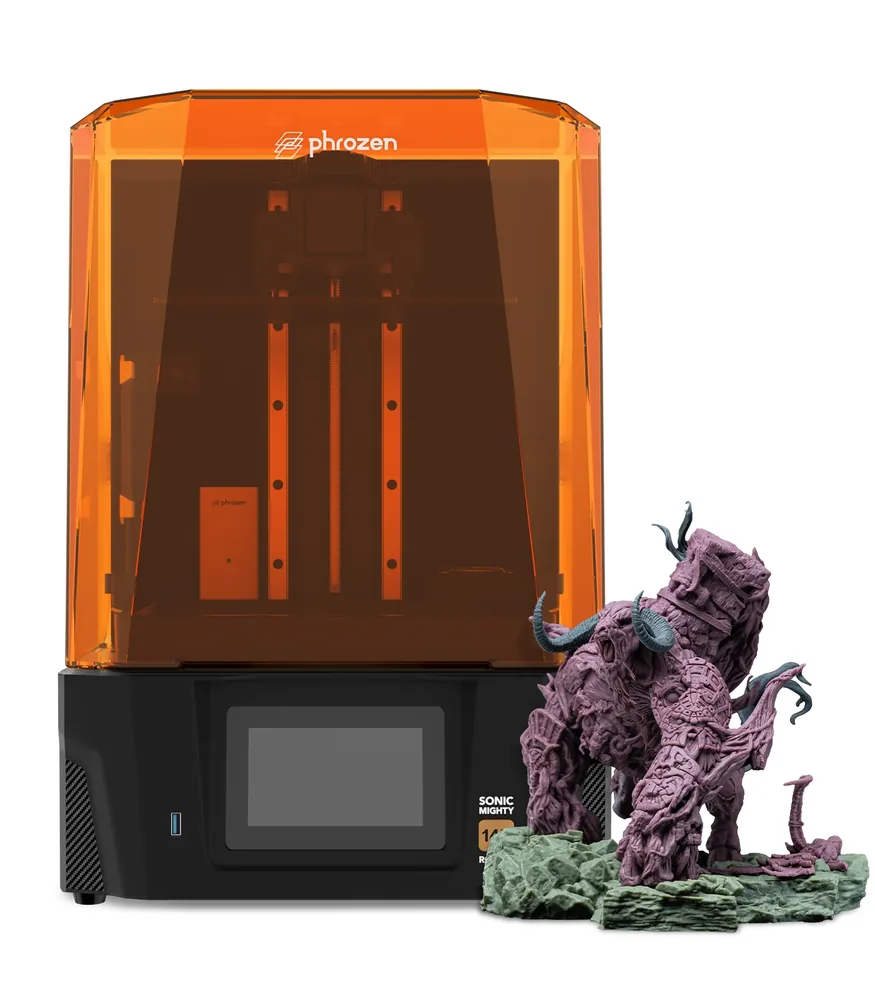

Phrozen Sonic Mighty Revo
An LCD resin printer with a monochrome 14K screen, a 223 × 126 × 235 mm build volume, and piezoelectric sensor detection linked to an app per Phrozen.
In short The Phrozen Sonic Mighty Revo is an resin (MSLA) 3D printer with a 223 × 126 × 235 mm (8.8 × 5 × 9.3 in) build volume. Phrozen claims a 10.1-inch 14K LCD; the printer measures 353 × 345 × 517 mm (13.9 × 13.6 × 20.4 in) and weighs 18 kg (39.7 lb).
Documentary analysis · Not personally tested
Resin · MSLAWhy consider it?
A 14K resolution at 13,320 × 5,120 pixels, an all-metal frame, three-point piezoelectric sensor detection linked to the Phrozen GO app, and a touch interface per Phrozen.
What to verify
A larger format than the Sonic Mini line, so more resin and space are needed; the exact box contents should be checked on the retailer's listing.
Phrozen Sonic Mighty Revo specifications
- Technology
- Resin (MSLA)
- Build volume
- 223 × 126 × 235 mm (8.8 × 5 × 9.3 in)
- Printer dimensions
- 353 × 345 × 517 mm (13.9 × 13.6 × 20.4 in)
- Weight
- 18 kg (39.7 lb)
- Enclosure
- Protective cover
- LCD screen
- 10.1 in · 14K
- Multicolor
- One resin at a time; no automatic color or material switching.
- Materials
- Compatible 405 nm UV resins for LCD/MSLA; Phrozen recommends its own resins to limit surface paint damage during post-processing.
- Screen
- 5-inch touchscreen
- Connectivity
- USB, Wi-Fi
How much space does it need?
The Phrozen Sonic Mighty Revo measures 353 × 345 × 517 mm (13.9 × 13.6 × 20.4 in) for a 223 × 126 × 235 mm (8.8 × 5 × 9.3 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 10% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official Phrozen pages (global.phrozen3d.com, us.phrozen3d.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The Sonic Mighty Revo is an LCD resin printer with a monochrome 14K screen and a 223 × 126 × 235 mm build volume per Phrozen. This format, larger than the Sonic Mini 8K S, suits batches of figurines, jewelry runs, and studios that regularly print several detailed parts at once.
The all-metal frame Phrozen advertises aims for better long-term stability than the lighter models in the lineup, useful for heavy workshop use.
Materials and setup
The printer runs compatible 405 nm UV resins for LCD/MSLA. Phrozen recommends using its own resins to avoid damaging paint or surface finish on parts, without ruling out other resins compatible with the process.
The three-point piezoelectric sensor, described by Phrozen as patented, continuously monitors print status and links to the Phrozen GO app for remote tracking from a smartphone.
What the bundle includes or not
Phrozen notes that a thank-you envelope with support and warranty information ships with the printer, with a CHITUBOX Pro trial card included on some production batches, without a guarantee every time. The exact box contents (resin tank, build plate, accessories) should be checked on the retailer's listing.
The touch interface is presented as intuitive by Phrozen, but the wash-and-cure station and resin are not included by default.
Alternatives to compare
For a more compact footprint and a tighter budget, the Sonic Mini 8K S remains Phrozen's entry-level option. For an even larger plate, the Sonic Mega 8K S targets bigger batch runs.
The resin printer buying guide and the resin materials guide help place this model against the competition before buying.
Similar printers to compare
Sources and limits
- Source: official Phrozen pages (global.phrozen3d.com, us.phrozen3d.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
