Comparing a mid-size 8K format

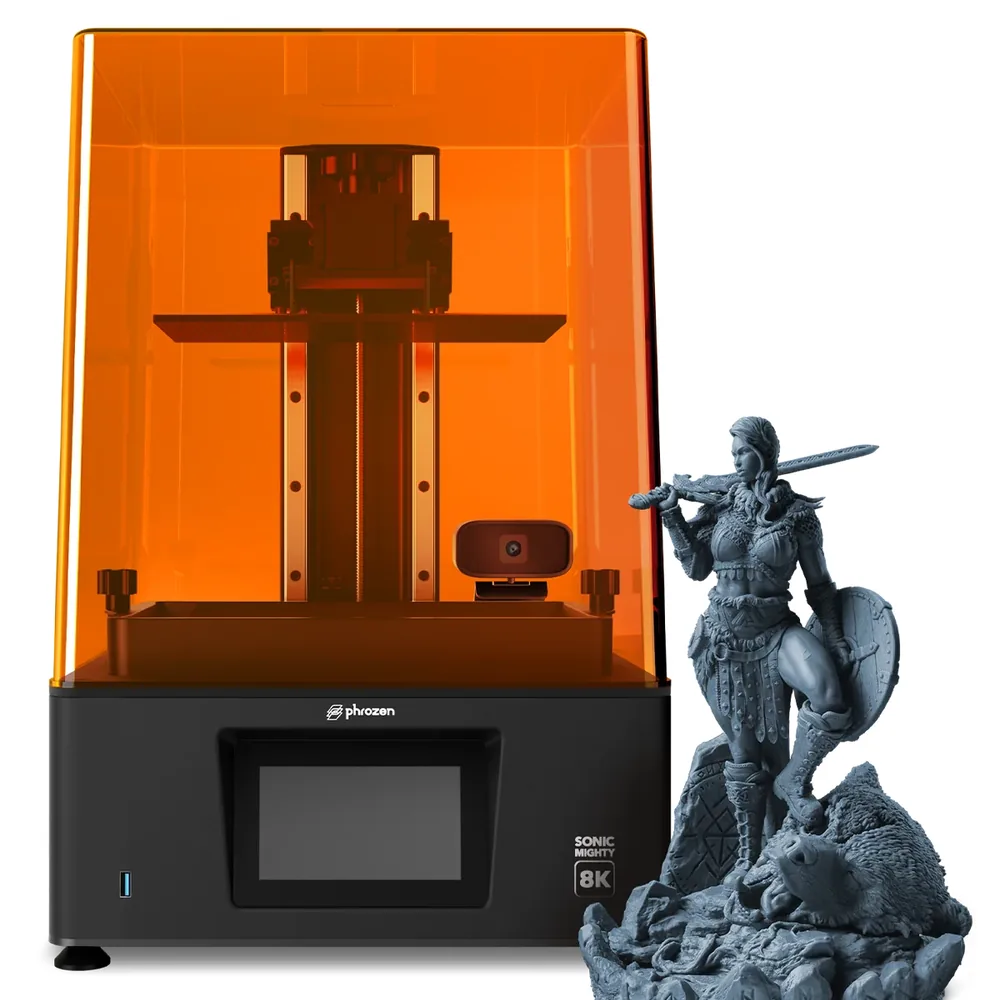

Phrozen Sonic Mighty 8K
An MSLA resin printer with a 10.1-inch monochrome 8K screen, a 223 × 126 × 235 mm build volume, and an XY resolution advertised at 28 μm per Phrozen.
In short The Phrozen Sonic Mighty 8K is an resin (MSLA) 3D printer with a 223 × 126 × 235 mm (8.8 × 5 × 9.3 in) build volume. Phrozen claims a 10.1-inch 8K LCD, 28 µm XY resolution and up to 70 mm/h; the printer measures 337 × 337 × 516 mm (13.3 × 13.3 × 20.3 in) and weighs 14.3 kg (31.5 lb).
Documentary analysis · Not personally tested
Resin · MSLAWhy consider it?
A 10.1-inch monochrome 8K screen with an XY resolution advertised at 28 μm, a linear-projection LED module, and a 223 × 126 × 235 mm volume per Phrozen.
What to verify
A moderate advertised speed, around 70 mm/h at its peak per Phrozen, slower than tilt-release models. Check the exact bundle contents on the retailer's listing.
Phrozen Sonic Mighty 8K specifications
- Technology
- Resin (MSLA)
- Build volume
- 223 × 126 × 235 mm (8.8 × 5 × 9.3 in)
- Printer dimensions
- 337 × 337 × 516 mm (13.3 × 13.3 × 20.3 in)
- Weight
- 14.3 kg (31.5 lb)
- Enclosure
- Protective cover
- LCD screen
- 10.1 in · 8K
- XY resolution
- 28 µm
- Claimed print speed
- 70 mm/h
- Multicolor
- One resin at a time; no automatic color or material switching.
- Materials
- Compatible 405 nm UV resins for MSLA; profile and post-processing steps specific to each product, especially Phrozen's own resin lineup as recommended by the manufacturer.
- Screen
- 5-inch touchscreen
- Connectivity
- USB, Wi-Fi
How much space does it need?
The Phrozen Sonic Mighty 8K measures 337 × 337 × 516 mm (13.3 × 13.3 × 20.3 in) for a 223 × 126 × 235 mm (8.8 × 5 × 9.3 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 11% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official Phrozen pages (global.phrozen3d.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The Sonic Mighty 8K sits between the more compact Sonic Mini 8K S and the larger Sonic Mega 8K S in Phrozen's 8K lineup, with a 223 × 126 × 235 mm volume per the manufacturer. This mid-size format suits medium to large figurines or several parts spread across the plate.
The 10.1-inch monochrome 8K screen with an XY resolution advertised at 28 μm targets fine detail over a larger area than a compact format, without reaching the Mega's largest format.
Materials and setup
The printer runs compatible 405 nm UV resins for MSLA, each with its own profile per Phrozen, which recommends pairing its own resins with its printers for consistent results.
The linear-projection LED module Phrozen advertises targets light uniformity across the whole plate, a point that matters for consistent curing at this screen size.
What the bundle includes or not
Phrozen lists a user manual and a warranty and support information envelope in the box, sometimes with a CHITUBOX Pro trial card depending on the batch. The exact contents (resin vat, plate, accessories) should still be checked on the retailer's listing.
A 5-inch touch panel for controlling the machine is advertised by Phrozen, separate from the 8K print screen dedicated to curing the resin.
Alternatives to compare
For a more compact format in the same lineup, the Sonic Mini 8K S is the closest Phrozen comparison. For a much larger plate, the Sonic Mega 8K S targets bigger batches.
The resin printer buying guide helps place this mid-size format against more compact or larger machines before comparing retailer prices.
Similar printers to compare
Sources and limits
- Source: official Phrozen pages (global.phrozen3d.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
