For a larger resin build plate

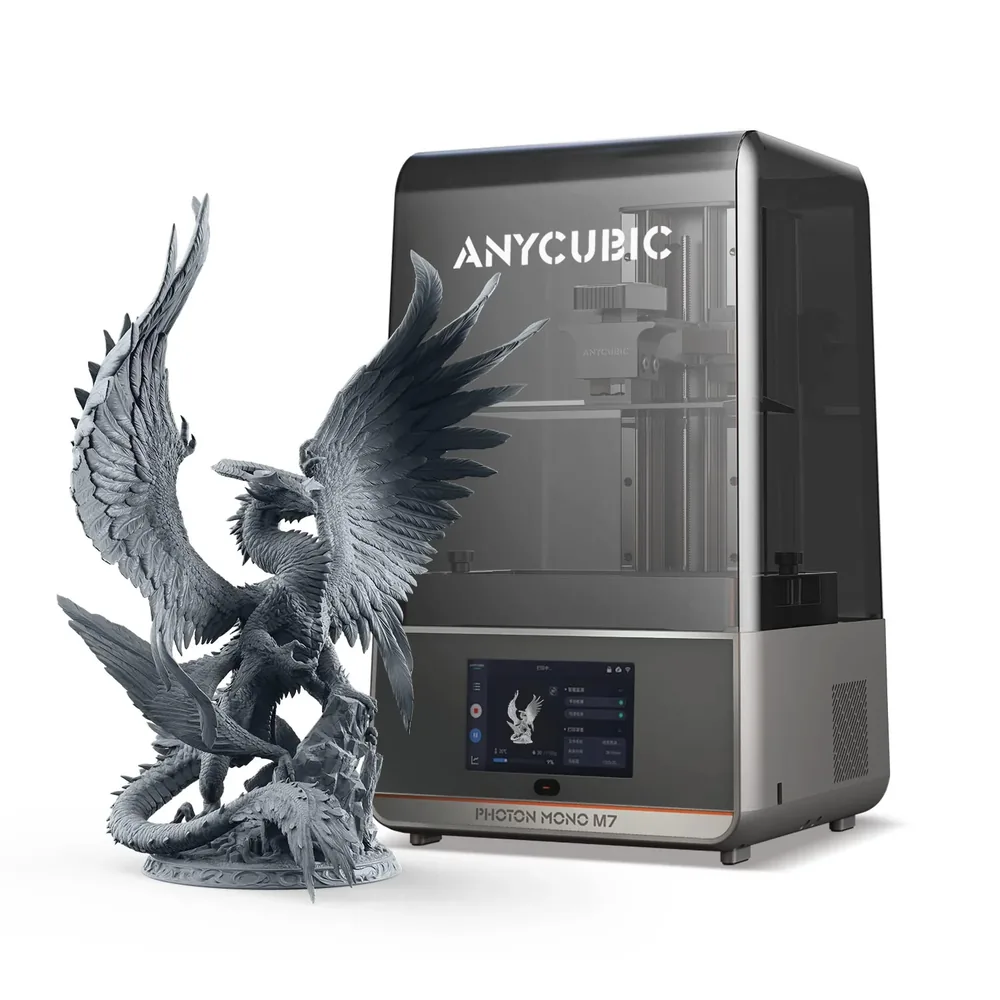

Anycubic Photon Mono M7
An MSLA resin printer with a 10.1-inch monochrome 14K screen and a 223 × 126 × 230 mm nominal build volume.
Documentary analysis · Not personally tested
Specification sources reviewed 2026-09-12. These are manufacturer claims, not measurements by Find My 3D Printer.
Why consider it?
A 14K screen at 13312 × 5120px, automatic resin refill and drain, and automatic leveling and zeroing.
What to verify
A larger bed heats and stabilizes more slowly than a compact format like the Mono 4.
The specifications that matter
- Process
- Resin
- Nominal build volume
- 223 × 126 × 230 mm
- Enclosure
- Protective cover, not a thermal chamber
- Multicolor
- One resin at a time; no automatic color switching.
- Materials
- 405nm UV resins: high-speed, water-washable, standard, ABS-like, and plant-based per Anycubic.
Allow room for supports and the chosen orientation. Confirm the exact nozzle, feeder, included accessories and installation clearance against the manual and seller’s listing.
Which projects is it for?
The Photon Mono M7 is an MSLA resin printer with a 10.1-inch monochrome 14K screen and a 223 × 126 × 230 mm nominal build volume per Anycubic. This larger footprint than the Mono 4 allows bigger batches of figurines or medium-sized parts in a single print.
The advertised 13312 × 5120px resolution, with 16.8 × 24.8µm pixels, targets a minimum molding diameter of 0.15mm per the manufacturer, a level of detail useful for figurines and fine technical parts.
Because the vat and any cured resin remain photosensitive between sessions, the printer works best away from direct sunlight or bright windows, regardless of the built-in cover, to avoid premature curing or discoloration over time. Room temperature also affects resin viscosity, so a stable, moderately warm space makes it easier to match the exposure settings the manufacturer documents for each profile.
Materials and setup
The printer runs compatible 405nm UV resins in MSLA format: high-speed, water-washable, standard, ABS-like, and plant-based per Anycubic, with a speed advertised at 90 mm/h at 0.1mm layer height with standard resin.
The light source combines a COB chip, Fresnel lens, and a uniformity algorithm, with intensity advertised at 4500µW/cm² (±10%). Automatic resin refill and drain, plus automatic leveling, cut down on handling between prints.
What the bundle includes or not
Anycubic's listing highlights automatic leveling and zeroing plus automatic resin refill and drain, but does not detail a full list of accessories included in the box.
The resin itself and a wash-and-cure station are not guaranteed to be included with the machine alone. Check the retailer's listing for exactly what your offer includes before comparing prices.
Warranty terms and technical support can also differ between Anycubic's own store and a third-party retailer. Since resin printing involves ongoing consumables (resin, isopropyl alcohol, gloves), it's worth pricing those recurring costs before comparing two machines on purchase price alone.
Alternatives to compare
For higher speed on the same plate, the Photon Mono M7 Pro shares the same volume with a high-speed resin advertised at 170 mm/h. For an even larger plate, the Photon Mono M7 Max steps up to 298 × 164 × 300 mm.
The Anycubic page covers the rest of the manufacturer's lineup, and the resin printer buying guide covers the criteria for choosing the right plate size.
Sources and limits
We have not measured noise, real printing speed, accuracy or reliability. Manufacturer images do not establish the contents of the selected bundle.
