For multicolor without purge

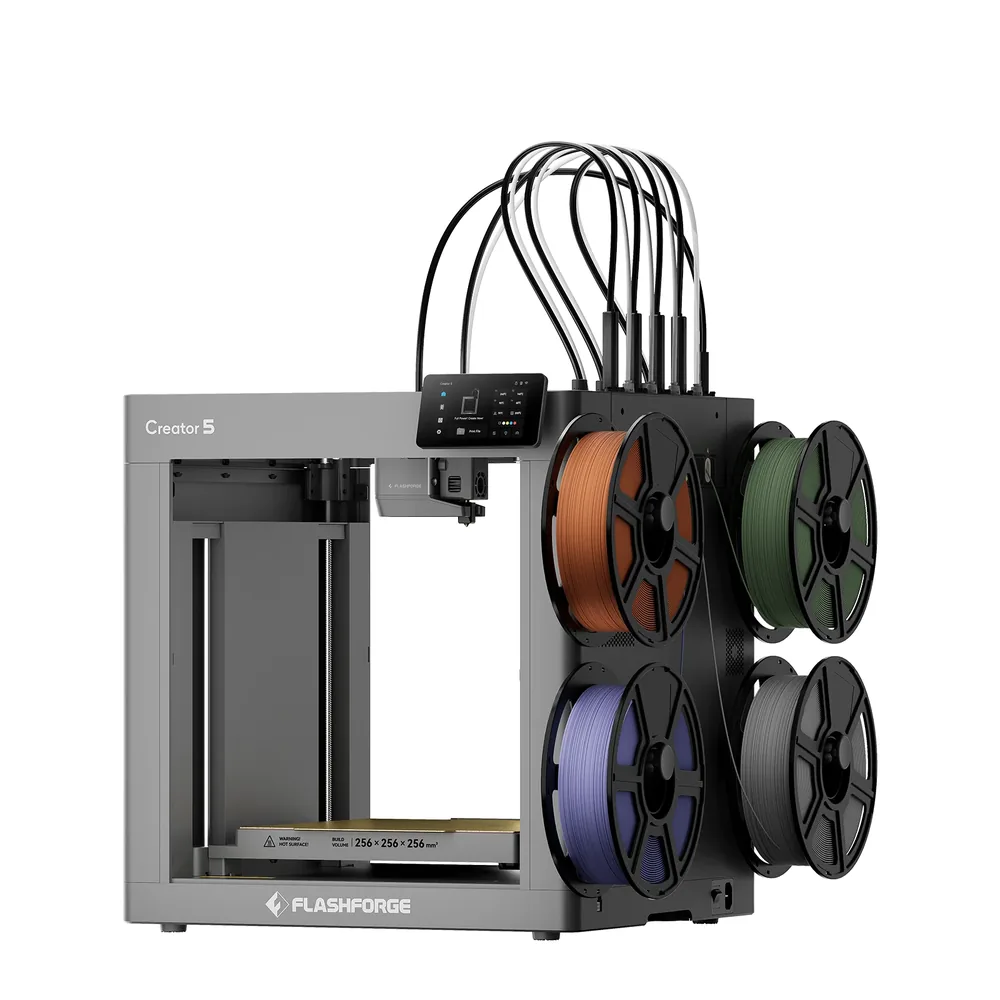

Flashforge Creator 5
An open-frame FDM printer with four independent toolheads and a 256 × 256 × 256 mm nominal build volume per Flashforge, built for multicolor prints without purging between colors.
In short The Flashforge Creator 5 is an open-frame filament (FDM) 3D printer with a 256 × 256 × 256 mm (10.1 × 10.1 × 10.1 in) build volume. Flashforge claims a 600 mm/s top speed, a 320 °C (608 °F) nozzle and a 120 °C (248 °F) bed; the printer measures 436 × 432 × 480 mm (17.2 × 17 × 18.9 in) and weighs 14 kg (30.9 lb).
Documentary analysis · Not personally tested
FDM · Open frameWhy consider it?
Four independent toolheads for purge-free multicolor printing, a travel speed advertised up to 600 mm/s, a 4-inch touchscreen, and a built-in 1280×720 camera per Flashforge.
What to verify
Open frame by default, with no actively heated chamber or air filtration: ABS, ASA, and HIPS need the optional enclosure per the manufacturer's listing.
Flashforge Creator 5 specifications
- Technology
- Filament (FDM)
- Build volume
- 256 × 256 × 256 mm (10.1 × 10.1 × 10.1 in)
- Printer dimensions
- 436 × 432 × 480 mm (17.2 × 17 × 18.9 in)
- Weight
- 14 kg (30.9 lb)
- Enclosure
- Open frame
- Claimed top speed
- 600 mm/s
- Claimed acceleration
- 30,000 mm/s²
- Max nozzle temperature
- 320 °C (608 °F)
- Max bed temperature
- 120 °C (248 °F)
- Nozzles
- 4 (multi-nozzle)
- Multicolor
- 4 independent toolheads: each stays parked in its dock while the others print, and the printer switches heads per the sliced file, with no single nozzle to purge between colors.
- Materials
- PLA, PETG, TPU (90A, 95A, 64D), PLA-CF, PETG-CF, Silk, PVA, and BVOH in standard configuration; ABS, ASA, HIPS, and reinforced composites with the optional enclosure per Flashforge.
- Screen
- 4-inch touchscreen
- Built-in camera
- Yes
- Connectivity
- USB, Wi-Fi
- Listed features
- Auto bed leveling, filament runout sensor
How much space does it need?
The Flashforge Creator 5 measures 436 × 432 × 480 mm (17.2 × 17 × 18.9 in) for a 256 × 256 × 256 mm (10.1 × 10.1 × 10.1 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 19% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official Flashforge pages (flashforge.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The Creator 5 is an open-frame FDM printer with four independent toolheads and a 256 × 256 × 256 mm nominal build volume per Flashforge. Each head stays parked in its dock while the others print, and the printer switches heads automatically based on the sliced file: it targets miniatures and multicolor parts without the purge a single nozzle needs at every color change.
The open frame and the lack of active chamber heating make it best suited to PLA, PETG, and TPU rather than technical materials, which need the optional enclosure Flashforge sells separately.
Materials and setup
Flashforge lists a nozzle up to 320°C and a heated bed up to 120°C, with a default 0.4mm quick-swap nozzle (0.25/0.6/0.8mm optional). In standard configuration, the listing covers PLA, PETG, TPU (90A, 95A, 64D), PLA-CF, PETG-CF, Silk, PVA, and BVOH.
With the optional enclosure, Flashforge adds ABS, ASA, HIPS, and several glass- or carbon-fiber reinforced composites to the compatible materials list. Auto bed leveling and a filament run-out sensor are part of the advertised standard equipment.
What the bundle includes or not
Per Flashforge, the 4-inch color touchscreen, the built-in camera (1280×720, 30fps), and power-loss recovery are standard across all four toolheads. The filament cutter and the chamber enclosure, however, are accessories sold separately, along with the filtration kit.
The official dimensions, 436 × 432 × 480mm without the filament tube and external spool holders, grow to 520 × 443 × 710mm once those accessories are installed: plan the space accordingly before comparing two listings.
Alternatives to compare
For the same base with an enclosed chassis and a chamber heated up to 65°C, Flashforge's Creator 5 Pro targets technical materials like ABS and ASA natively. For a built-in multicolor system on a more compact open-frame base, the AD5X remains an alternative at Flashforge.
The multicolor buying guide helps compare a four-toolhead system like the Creator 5's against a spool-based AMS or MMU.
Similar printers to compare
Sources and limits
- Source: official Flashforge pages (flashforge.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
