For multicolor ABS without purge

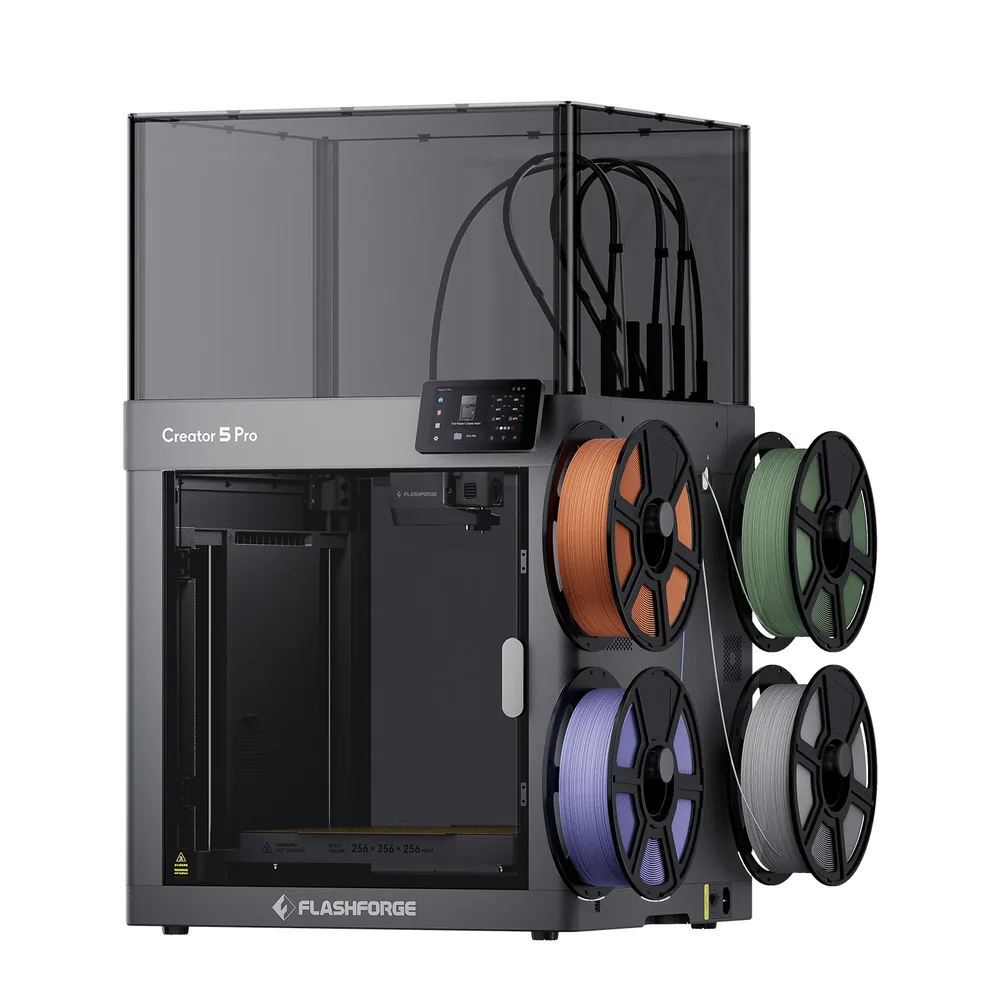

Flashforge Creator 5 Pro
An enclosed FDM printer with four independent toolheads and a chamber actively heated up to 65°C, with a 256 × 256 × 256 mm build volume per Flashforge.
In short The Flashforge Creator 5 Pro is an enclosed filament (FDM) 3D printer with a 256 × 256 × 256 mm (10.1 × 10.1 × 10.1 in) build volume. Flashforge claims a 600 mm/s top speed, a 320 °C (608 °F) nozzle and active chamber heating to 65 °C (149 °F); the printer measures 441 × 411 × 460 mm (17.4 × 16.2 × 18.1 in) and weighs 18 kg (39.7 lb).
Documentary analysis · Not personally tested
FDM · EnclosedWhy consider it?
An enclosed chassis with a chamber actively heated up to 65°C and built-in HEPA13 plus activated-carbon filtration, four independent toolheads for purge-free multicolor printing, a 4-inch touchscreen, and a built-in 1280×720 camera.
What to verify
The exact box contents (spare nozzles, spool holders) aren't detailed on the manufacturer's listing; dimensions and weight vary depending on whether external accessories are installed.
Flashforge Creator 5 Pro specifications
- Technology
- Filament (FDM)
- Build volume
- 256 × 256 × 256 mm (10.1 × 10.1 × 10.1 in)
- Printer dimensions
- 441 × 411 × 460 mm (17.4 × 16.2 × 18.1 in)
- Weight
- 18 kg (39.7 lb)
- Enclosure
- Enclosed, active heating up to 65 °C (149 °F)
- Claimed top speed
- 600 mm/s
- Claimed acceleration
- 30,000 mm/s²
- Max nozzle temperature
- 320 °C (608 °F)
- Max bed temperature
- 120 °C (248 °F)
- Nozzles
- 4 (multi-nozzle)
- Multicolor
- 4 independent toolheads: each stays parked in its dock while the others print, with no single nozzle to purge between colors or materials.
- Materials
- PLA, PETG, TPU, Silk, PVA, BVOH, ABS, ASA, PC, PA, and glass- or carbon-fiber reinforced composites natively thanks to the heated chamber, per Flashforge.
- Screen
- 4-inch touchscreen
- Built-in camera
- Yes
- Connectivity
- USB, Wi-Fi
- Listed features
- Auto bed leveling, filament runout sensor, built-in air filtration
How much space does it need?
The Flashforge Creator 5 Pro measures 441 × 411 × 460 mm (17.4 × 16.2 × 18.1 in) for a 256 × 256 × 256 mm (10.1 × 10.1 × 10.1 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 20% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official Flashforge pages (flashforge.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The Creator 5 Pro carries over the Creator 5's four-independent-toolhead chassis but encloses it in a chamber actively heated up to 65°C, for the same 256 × 256 × 256 mm nominal build volume per Flashforge. It targets workshops and makers who want to print ABS, ASA, or technical composites in multiple colors without purging a single nozzle at every change.
The built-in medical-grade HEPA13 and activated-carbon filtration also makes it a sensible choice for a shared workshop or classroom rather than a ventilated garage.
Materials and setup
Flashforge lists a nozzle up to 320°C and a heated bed up to 120°C, with a default 0.4mm quick-swap nozzle (0.25/0.6/0.8mm optional). The chamber, actively heated up to 65°C, lets it natively print ABS, ASA, PC, PA, and glass- or carbon-fiber reinforced composites per Flashforge, on top of PLA, PETG, TPU, Silk, and PVA.
Auto bed leveling and a filament run-out sensor are part of the advertised standard equipment across all four toolheads.
What the bundle includes or not
Per Flashforge, the 4-inch color touchscreen, the built-in camera (1280×720, 30fps), and the HEPA13 plus activated-carbon filtration are standard equipment. The exact box contents (spare nozzles, an extra plate) aren't detailed on the manufacturer's listing.
The official dimensions, 441 × 411 × 460mm without the filament tube and external spool holders, grow to 520 × 443 × 710mm once those accessories are installed, for an 18kg net weight: worth checking before comparing two listings.
Alternatives to compare
For a tighter budget without an enclosure or filtration, Flashforge's Creator 5 shares the same four-toolhead chassis and nominal volume. For more compact multicolor on an open frame, Flashforge's AD5X feeds a single nozzle through its IFS system instead of four independent toolheads.
The multicolor buying guide helps compare a four-toolhead system like the Creator 5 Pro's against a spool-based AMS or MMU.
Similar printers to compare
Sources and limits
- Source: official Flashforge pages (flashforge.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
