For starting with Klipper on a budget

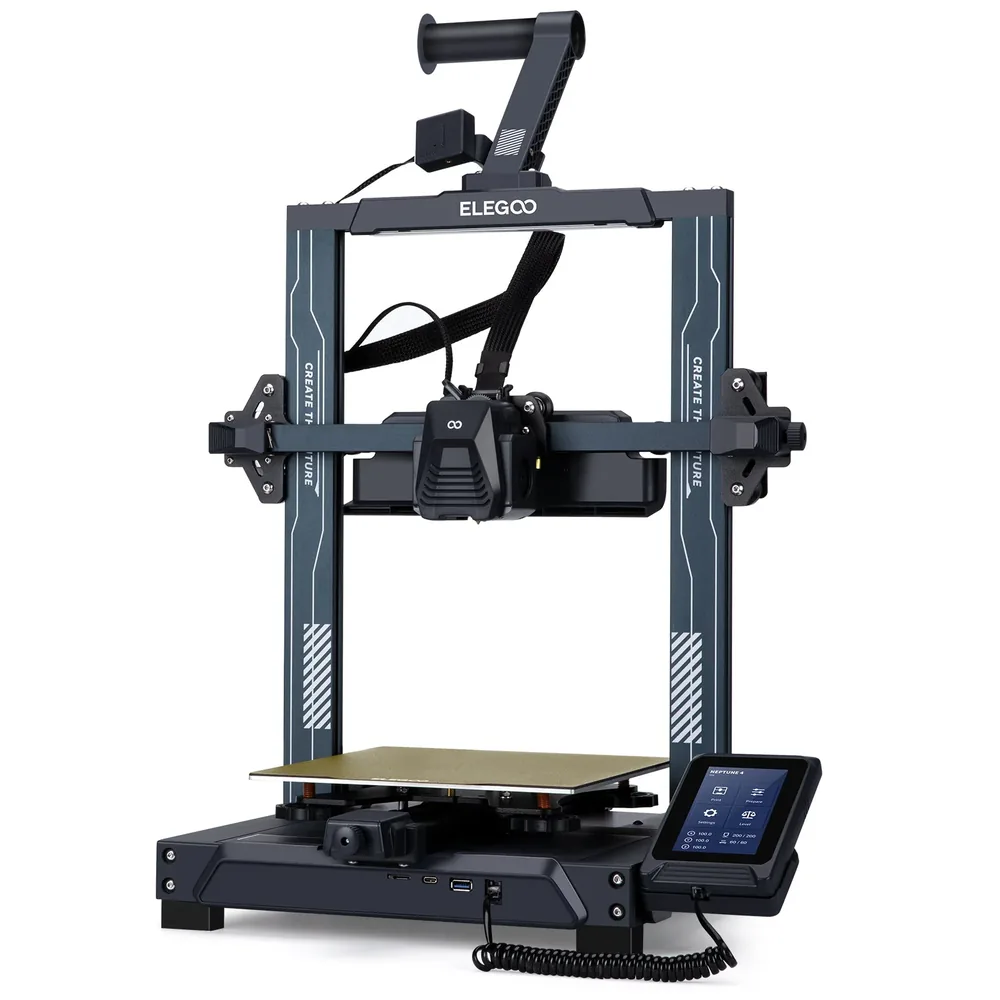

Elegoo Neptune 4
An open-frame FDM printer with Klipper firmware pre-installed, a 225 × 225 × 265 mm nominal build volume, and a top speed advertised at 500 mm/s.
In short The Elegoo Neptune 4 is an open-frame filament (FDM) 3D printer with a 225 × 225 × 265 mm (8.9 × 8.9 × 10.4 in) build volume. Elegoo claims a 500 mm/s top speed, a 300 °C (572 °F) nozzle and a 110 °C (230 °F) bed; the printer measures 475 × 445 × 515 mm (18.7 × 17.5 × 20.3 in) and weighs 8.3 kg (18.3 lb).
Documentary analysis · Not personally tested
FDM · Open frameWhy consider it?
121-point auto leveling, Klipper firmware pre-installed with input shaping and pressure advance, a dual-sided PEI/PLA build plate, and USB/LAN connectivity at an entry-level price per Elegoo.
What to verify
Open frame with no Wi-Fi or camera: ABS and ASA need a separately sold enclosure, and the exact box contents beyond the base unit and screen should be checked on the retailer's listing.
Elegoo Neptune 4 specifications
- Technology
- Filament (FDM)
- Build volume
- 225 × 225 × 265 mm (8.9 × 8.9 × 10.4 in)
- Printer dimensions
- 475 × 445 × 515 mm (18.7 × 17.5 × 20.3 in)
- Weight
- 8.3 kg (18.3 lb)
- Enclosure
- Open frame
- Claimed top speed
- 500 mm/s
- Claimed acceleration
- 20,000 mm/s²
- Max nozzle temperature
- 300 °C (572 °F)
- Max bed temperature
- 110 °C (230 °F)
- Multicolor
- No multicolor system; Elegoo's listing shows no Canvas capability on this monochrome model.
- Materials
- PLA, TPU, PETG, ABS, ASA, and nylon with a nozzle advertised up to 300°C; ABS and ASA are recommended with an enclosure sold as an accessory.
- Connectivity
- Ethernet, USB
- Listed features
- Auto bed leveling, filament runout sensor
How much space does it need?
The Elegoo Neptune 4 measures 475 × 445 × 515 mm (18.7 × 17.5 × 20.3 in) for a 225 × 225 × 265 mm (8.9 × 8.9 × 10.4 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 12% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official Elegoo pages (fr.elegoo.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The Neptune 4 is an open-frame FDM printer with a 225 × 225 × 265 mm nominal build volume per Elegoo's listing. Klipper firmware comes pre-installed out of the box, with a top speed advertised at 500 mm/s (250 mm/s recommended) and a maximum acceleration of 20,000 mm/s². This compact footprint suits first FDM projects, mid-size parts, and anyone who wants Klipper without flashing it themselves.
121-point (11 × 11) auto bed leveling removes most of the initial setup, and the dual-sided plate (PLA-specific and textured PEI) covers both early PLA prints and stickier materials like TPU.
Materials and setup
The nozzle heats up to 300°C, and Elegoo's listing shows compatibility with PLA, TPU, PETG, ABS, ASA, and nylon. The copper-titanium heat break is designed to reduce clogging even at higher speeds, and the dual-gear direct extruder, with a 5.2:1 reduction ratio, is advertised for consistent filament extrusion.
The chassis stays open: Elegoo recommends an enclosure for ABS and ASA, sold separately and not included by default. The advertised maximum bed temperature is 110°C at 25°C ambient, which is typical for this entry-level Klipper segment.
What the bundle includes or not
The box includes the base unit, gantry frame unit, spool holder arm, touch screen, and spiral cable per Elegoo's "What's In Box" list, which mentions additional items without detailing all of them. The exact contents, spare nozzle, tools, or extra plate, should be checked on the retailer's listing before buying.
This base version has neither Wi-Fi nor a built-in camera: connectivity is limited to USB and LAN per Elegoo, unlike the Plus and Max versions, which add Wi-Fi.
Alternatives to compare
For a dual-zone heated bed on the same Klipper architecture, the Neptune 4 Pro is the next step up, while the Neptune 4 Plus and Neptune 4 Max target larger footprints with Wi-Fi added.
The beginner's buying guide helps place the Neptune 4 against other entry-level models, and the FDM vs resin guide confirms whether FDM fits the intended project.
Similar printers to compare
Sources and limits
- Source: official Elegoo pages (fr.elegoo.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
