For large-format multicolor printing

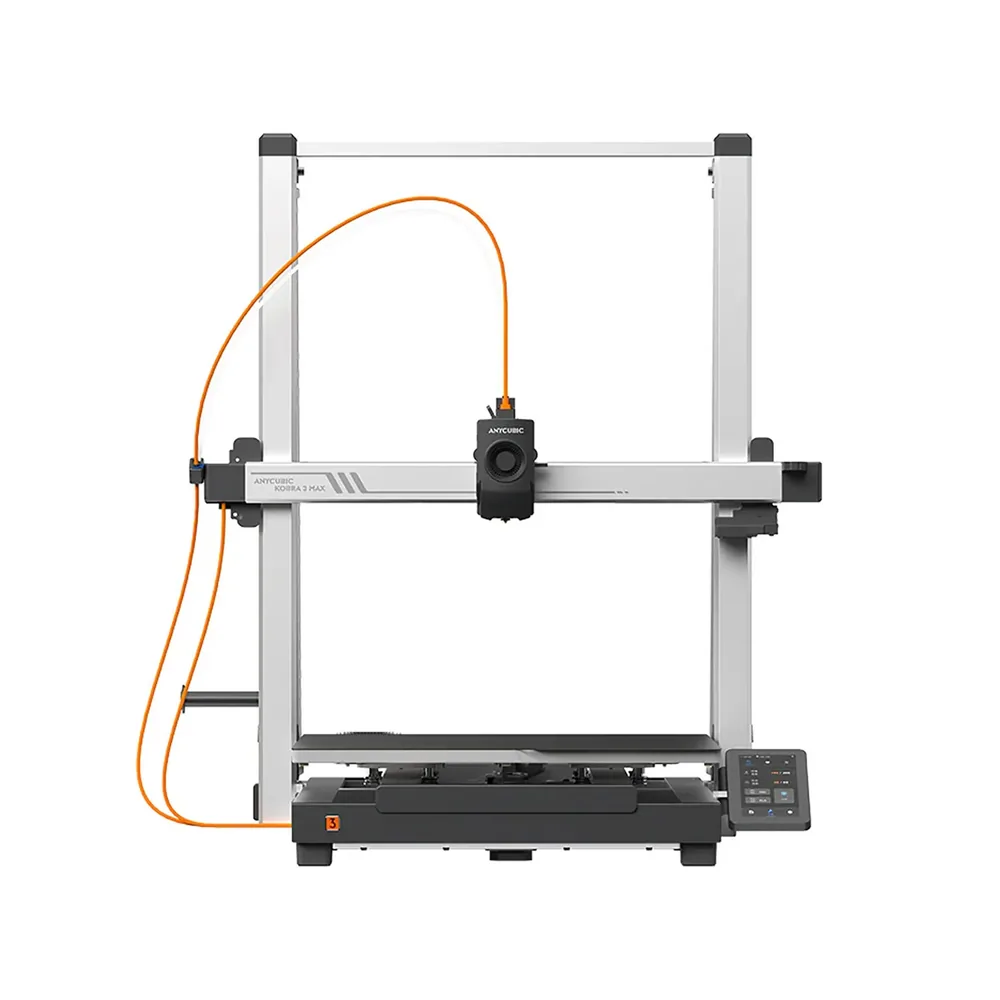

Anycubic Kobra 3 Max
An open-frame FDM printer with a 420 × 420 × 500 mm nominal build volume and optional multicolor via the ACE Pro.
In short The Anycubic Kobra 3 Max is an open-frame filament (FDM) 3D printer with a 420 × 420 × 500 mm (16.5 × 16.5 × 19.7 in) build volume. Anycubic claims a 600 mm/s top speed, a 300 °C (572 °F) nozzle and a 90 °C (194 °F) bed; the printer measures 706 × 640 × 753 mm (27.8 × 25.2 × 29.6 in) and weighs 19 kg (41.9 lb).
Documentary analysis · Not personally tested
FDM · Open frameWhy consider it?
A 420 × 420 × 500 mm build volume with automatic LeviQ 3.0 leveling and a top speed advertised at 600 mm/s despite the size.
What to verify
A bed this size heats and stabilizes more slowly than a 250 mm footprint; the frame stays open, with no enclosure for ABS or ASA.
Anycubic Kobra 3 Max specifications
- Technology
- Filament (FDM)
- Build volume
- 420 × 420 × 500 mm (16.5 × 16.5 × 19.7 in)
- Printer dimensions
- 706 × 640 × 753 mm (27.8 × 25.2 × 29.6 in)
- Weight
- 19 kg (41.9 lb)
- Enclosure
- Open frame
- Claimed top speed
- 600 mm/s
- Claimed acceleration
- 10,000 mm/s²
- Max nozzle temperature
- 300 °C (572 °F)
- Max bed temperature
- 90 °C (194 °F)
- Multicolor
- ACE Pro sold separately; up to 8 colors advertised with two units.
- Materials
- PLA, PETG, and TPU per Anycubic; TPU is not compatible with the ACE Pro.
- Screen
- 4.3-inch touchscreen
- Built-in camera
- No
- Connectivity
- USB
- Listed features
- Auto bed leveling, filament runout sensor, filament cutter
How much space does it need?
The Anycubic Kobra 3 Max measures 706 × 640 × 753 mm (27.8 × 25.2 × 29.6 in) for a 420 × 420 × 500 mm (16.5 × 16.5 × 19.7 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 26% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official Anycubic pages (store.anycubic.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The Kobra 3 Max carries over the Kobra 3's architecture in a much larger footprint, with a 420 × 420 × 500 mm nominal build volume per Anycubic. It suits bulky parts (fairings, storage bins, life-size accessories) and multiple batches printed at once on a large plate.
The advertised speed stays high, up to 600 mm/s, which helps keep print time reasonable despite the larger footprint. With the optional ACE Pro, up to eight colors remain possible on this base, just like on the standard Kobra 3.
Materials and setup
The printer runs PLA, PETG, and TPU per Anycubic, with a nozzle advertised up to 300°C and a bed up to 90°C, a lower ceiling than the standard Kobra 3 to limit heat-up time on a bed this size.
Automatic LeviQ 3.0 leveling recalibrates the surface before each print. TPU is not compatible with the ACE Pro for multicolor use per the manufacturer, and the open frame lists neither ABS nor ASA among its advertised materials.
What the bundle includes or not
Per Anycubic's listing, the Kobra 3 Max alone ships across several modules: frame, print head, touchscreen, spool holder, printer base, several hardware bags, a wrench set, a support rod, a cable holder, and two power cords.
The ACE Pro, needed for multicolor printing up to eight colors with two units, is sold separately. Before buying, check the retailer's listing for whether it includes this module or only the machine alone, plus the exact hardware and assembly accessories.
Before finalizing a purchase, compare the exact spec sheet and box contents listed by the retailer rather than relying only on the product photo, especially for the number of spare nozzles, cables included, and assembly accessories. Warranty terms and technical support can also differ noticeably between Anycubic's own store and a third-party retailer, worth checking before comparing two similarly priced offers. Since filament beyond the test spool is not included, it's also worth budgeting for ongoing material costs as part of the overall setup rather than treating the listed price as the full cost.
Alternatives to compare
For a more compact footprint in the same lineup, the Kobra 3 shares the same base technology with a smaller footprint. For another open-frame large-format option, the Creality CR-M4 offers a similar volume from a competing manufacturer.
The Anycubic page covers the rest of the manufacturer's lineup, and the large-format buying guide covers the criteria for choosing a printer this size.
Similar printers to compare
Sources and limits
- Source: official Anycubic pages (store.anycubic.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
