Comparing a faster resin option

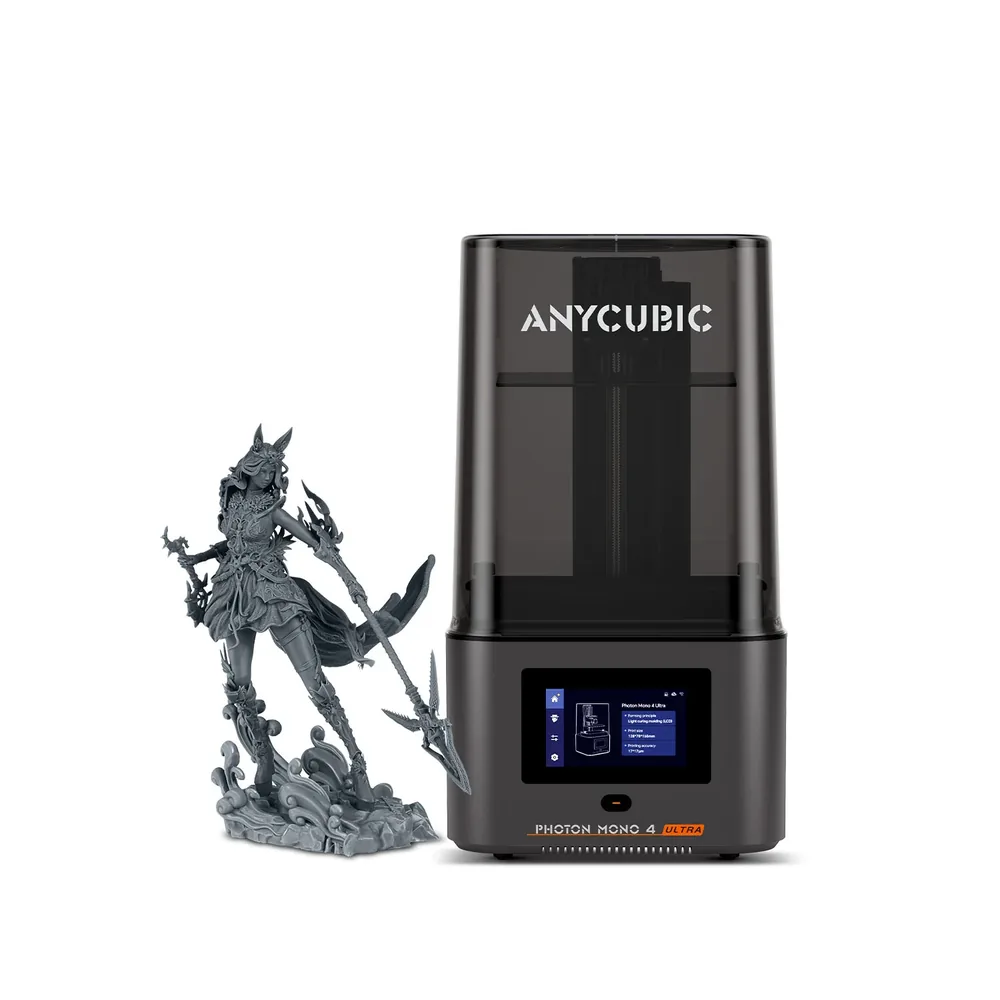

Anycubic Photon Mono 4 Ultra
An MSLA resin printer with a monochrome 10K screen, the same volume as the Mono 4, plus a high-speed resin advertised up to 120 mm/h.
In short The Anycubic Photon Mono 4 Ultra is an resin (MSLA) 3D printer with a 153.4 × 87 × 165 mm (6 × 3.4 × 6.5 in) build volume. Anycubic claims a 7-inch 10K LCD, 17 µm XY resolution and up to 120 mm/h.
Documentary analysis · Not personally tested
Resin · MSLAWhy consider it?
Speed advertised up to 120 mm/h with the high-speed resin, failed-print detection, and a light uniformity algorithm rated at 90% or higher.
What to verify
Same compact 2.2L volume as the Mono 4: speed improves, not the footprint.
Anycubic Photon Mono 4 Ultra specifications
- Technology
- Resin (MSLA)
- Build volume
- 153.4 × 87 × 165 mm (6 × 3.4 × 6.5 in)
- Enclosure
- Protective cover
- LCD screen
- 7 in · 10K
- XY resolution
- 17 µm
- Claimed print speed
- 120 mm/h
- Multicolor
- One resin at a time; no automatic color switching.
- Materials
- Standard resin, High Speed Resin 2.0, and a 14K texture resin per Anycubic.
Source: official Anycubic pages (store.anycubic.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The Photon Mono 4 Ultra carries over the same volume as the Mono 4, 153.4 × 87 × 165 mm per Anycubic, with an identical monochrome 10K screen (9024 × 5120px, 17 × 17µm pixels). It targets the same use case: miniatures, figurines, and detailed parts in a compact format.
The difference is speed: with High Speed Resin 2.0, the machine advertises up to 120 mm/h at 0.1mm layer height, a 60% increase over the previous generation per the manufacturer, versus 80 mm/h maximum with standard resin.
Materials and setup
The printer runs standard resin, High Speed Resin 2.0, and a 14K texture resin per Anycubic, each with its own exposure profile. The light source combines a COB chip and Fresnel lens with a uniformity algorithm advertised at 90% or higher.
Failed-print detection monitors anomalies (cracks, detachment, layer separation) and pauses the print if an issue appears per the manufacturer, alongside monitoring of the remaining resin level.
What the bundle includes or not
Some listings pair the printer with a bundle including resin (1kg), an air purifier, a cleaning kit, and a screen protector, but this content varies by bundle and is not guaranteed when buying the machine alone.
A dedicated wash-and-cure station is not included in these starter bundles and remains a separate accessory per Anycubic. Check the retailer's listing for the exact bundle contents before comparing prices.
Warranty terms and technical support can also differ between Anycubic's own store and a third-party retailer. Since resin printing involves ongoing consumables (high-speed resin, isopropyl alcohol, gloves), it's worth pricing those recurring costs before comparing two machines on purchase price alone.
Alternatives to compare
For a lower price at the same volume, the Photon Mono 4 remains the most direct comparison. For a notably larger plate, the Photon Mono M7 steps up to 223 × 126 × 230 mm.
The Anycubic page covers the rest of the manufacturer's lineup, and the resin printer buying guide helps weigh speed against format for your usual projects.
Similar printers to compare
Sources and limits
- Source: official Anycubic pages (store.anycubic.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
