For an open large-format Klipper printer

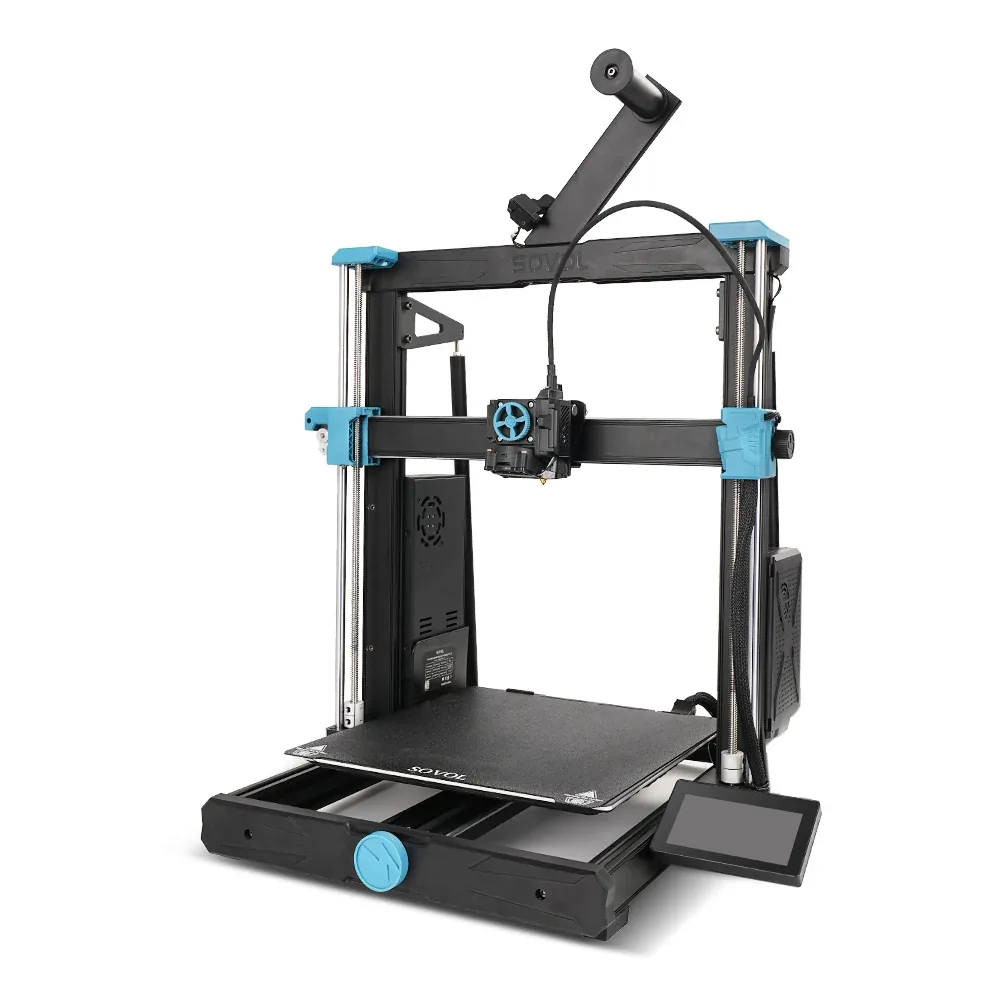

Sovol SV06 Plus ACE
An open-frame FDM printer with a 300 × 300 × 350 mm nominal build volume, dual Z motors, and a speed advertised up to 500 mm/s per Sovol.
In short The Sovol SV06 Plus ACE is an open-frame filament (FDM) 3D printer with a 300 × 300 × 350 mm (11.8 × 11.8 × 13.8 in) build volume. Sovol claims a 500 mm/s top speed, a 300 °C (572 °F) nozzle and a 100 °C (212 °F) bed; the printer measures 510 × 575 × 710 mm (20.1 × 22.6 × 28 in).
Documentary analysis · Not personally tested
FDM · Open frameWhy consider it?
A 300 × 300 × 350 mm volume, dual Z motors, a planetary dual-gear extruder (1:7.5 ratio), strain-gauge leveling, and a speed advertised up to 500 mm/s per Sovol.
What to verify
An open frame with no stock enclosure on a large plate, more sensitive to drafts than a compact format. The screen and spool holder need self-installation per Sovol's listing.
Sovol SV06 Plus ACE specifications
- Technology
- Filament (FDM)
- Build volume
- 300 × 300 × 350 mm (11.8 × 11.8 × 13.8 in)
- Printer dimensions
- 510 × 575 × 710 mm (20.1 × 22.6 × 28 in)
- Enclosure
- Open frame
- Claimed top speed
- 500 mm/s
- Claimed acceleration
- 15,000 mm/s²
- Max nozzle temperature
- 300 °C (572 °F)
- Max bed temperature
- 100 °C (212 °F)
- Multicolor
- No stock multicolor system; a monochrome single-extruder machine.
- Materials
- PLA, PETG, TPU, and PVA per Sovol; ABS and some nylons remain possible with an added enclosure, not included as shipped.
- Screen
- 4.3-inch touchscreen
- Built-in camera
- Yes
- Connectivity
- Wi-Fi, USB, microSD card
- Listed features
- Auto bed leveling, filament runout sensor
How much space does it need?
The Sovol SV06 Plus ACE measures 510 × 575 × 710 mm (20.1 × 22.6 × 28 in) for a 300 × 300 × 350 mm (11.8 × 11.8 × 13.8 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 15% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official Sovol pages (sovol3d.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The SV06 Plus ACE carries the SV06 ACE's Klipper base into a much larger 300 × 300 × 350 mm volume per Sovol, built for bigger parts or several objects on one plate.
A speed advertised up to 500 mm/s with 15,000 mm/s² acceleration per Sovol stays high for a format this size, a point that matters on long prints at this volume.
Materials and setup
The nozzle heats up to 300°C and the bed up to 100°C per Sovol, values that cover the PLA, PETG, TPU, and PVA the manufacturer advertises. ABS and some nylons remain possible but benefit from an added enclosure, absent on this open frame.
The planetary dual-gear extruder with a 1:7.5 ratio and strain-gauge leveling at the nozzle tip aim for more consistent extrusion on a plate this size, backed by dual Z motors for vertical rigidity.
What the bundle includes or not
Sovol presents the machine as shipping nearly assembled, with the 4.3-inch touchscreen, spool holder, and some external parts left for the user to install. The exact box contents should still be checked on the retailer's listing.
A built-in camera compatible with the Obico app and 2.4 GHz Wi-Fi are advertised by Sovol, useful for monitoring a long print remotely on this format.
Alternatives to compare
For a more compact format on the same Klipper architecture, the same lineup's SV06 ACE is the closest comparison. For an open-source CoreXY aimed at heavier use, the SV08 is worth considering.
The functional-parts buying guide helps judge whether this format and these materials cover the type of parts you need before comparing retailer prices.
Similar printers to compare
Sources and limits
- Source: official Sovol pages (sovol3d.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
