For a compact printer running Klipper

Sovol SV06 ACE

An open-frame FDM printer with a 220 × 220 × 250 mm nominal build volume, pressure-sensor auto leveling, and a speed advertised up to 600 mm/s per Sovol.

Filament (FDM)220 × 220 × 250 mmOpen frame

Documentary analysis · Not personally tested

See the manufacturer and sellers

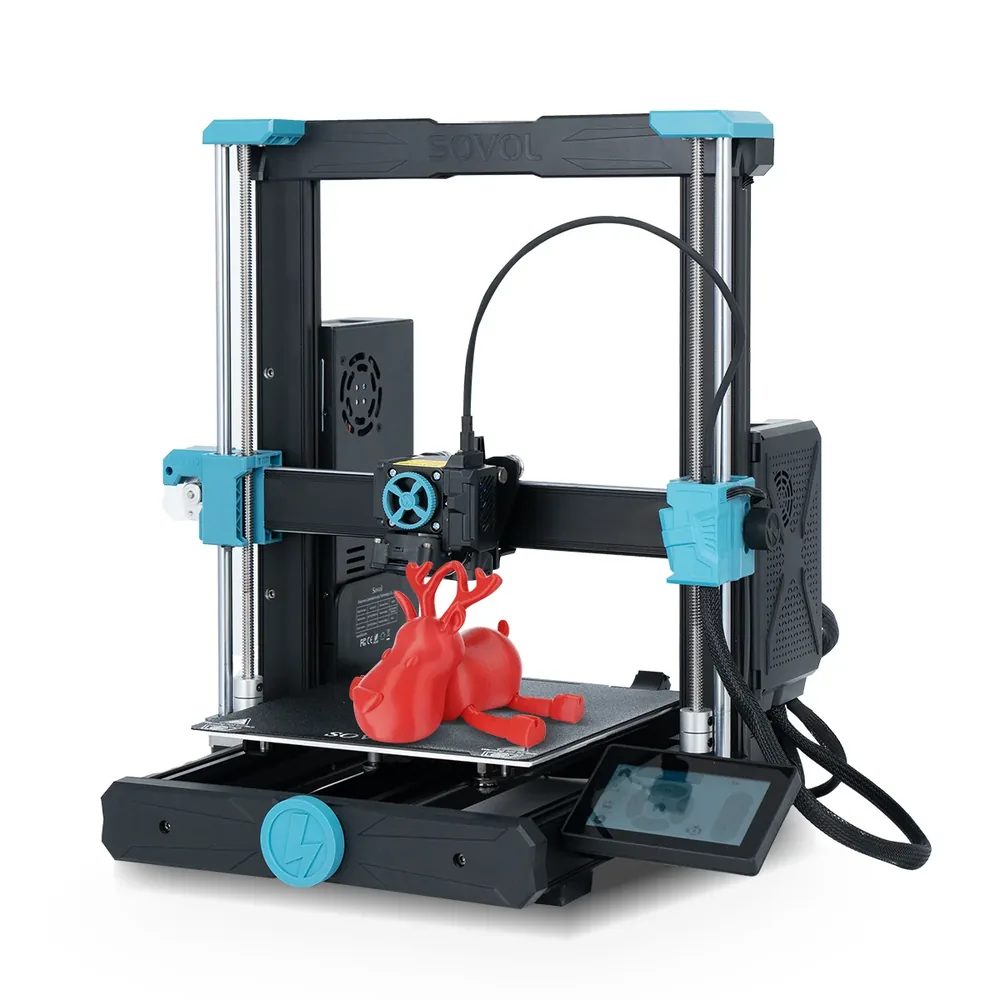

Sovol SV06 ACE, manufacturer image — Image provided by Sovol. Equipment shown does not establish the contents of the selected bundle.

Specification sources reviewed 2026-09-12. These are manufacturer claims, not measurements by Find My 3D Printer.

Why consider it?

Pressure-sensor auto leveling with no paper needed, a 64-bit Klipper board, a speed advertised up to 600 mm/s, and a 4.3-inch touchscreen per Sovol.

What to verify

An open frame with no stock enclosure, worth watching for ABS or draft-sensitive filaments. The machine ships partially assembled; check the exact contents on the retailer's listing.

The specifications that matter

Process: FDM
Nominal build volume: 220 × 220 × 250 mm
Enclosure: Open frame
Multicolor: No stock multicolor system; a monochrome single-extruder machine.
Materials: PLA, PETG, TPU, and PVA per Sovol; ABS remains possible but a separate enclosure is recommended on this open frame.

Allow room for supports and the chosen orientation. Confirm the exact nozzle, feeder, included accessories and installation clearance against the manual and seller’s listing.

Which projects is it for?

The SV06 ACE targets a compact 220 × 220 × 250 mm format per Sovol, suited to everyday parts, figurines, and calibration tests without taking up much desk space or requiring a large workshop area.

A speed advertised up to 600 mm/s with 20,000 mm/s² acceleration per Sovol saves time on batches of small parts, while staying on an entry-level format that's easy to set up for a first Klipper-based machine.

Materials and setup

The nozzle heats up to 300°C and the bed up to 100°C per Sovol, values that cover the PLA, PETG, TPU, and PVA the manufacturer advertises. ABS remains usable but benefits from an added enclosure, not included on the base machine.

Auto leveling relies on a pressure sensor that measures the plate directly, an alternative Sovol advertises to the traditional paper-feeler method for dialing in the first layer.

What the bundle includes or not

Sovol lists a partially assembled machine shipping with a tool kit, a spare 0.4 mm nozzle, side cutters, a plastic scraper, a USB drive with OrcaSlicer and sample models, and a PLA filament sample to start printing right away. Exact contents can vary by retailer.

The advertised assembly time stays short, around fifteen minutes per Sovol, limiting the prep needed before the first prints.

Alternatives to compare

For a significantly larger format on the same Klipper base, the same lineup's SV06 Plus ACE is the most direct comparison. For a faster open-source CoreXY, the SV08 targets heavier use.

The beginner's buying guide helps weigh this compact format against larger or faster machines before buying.

Frequently asked questions

Does auto leveling remove the need for any manual setup?

The pressure sensor measures the plate automatically per Sovol, reducing manual adjustment, but a visual check of the first layer is still worthwhile on a new plate.

Can it print ABS without an enclosure?

The frame is open per Sovol, so ABS stays more sensitive to drafts and warping than with a separately added enclosure, which isn't included on the base machine.

What's the difference from the SV06 Plus ACE?

The SV06 Plus ACE offers a 300 × 300 × 350 mm volume versus 220 × 220 × 250 mm here, for larger parts on a similar Klipper architecture per Sovol.

Sources and limits

We have not measured noise, real printing speed, accuracy or reliability. Manufacturer images do not establish the contents of the selected bundle.
