For an enclosed, filtered CoreXY

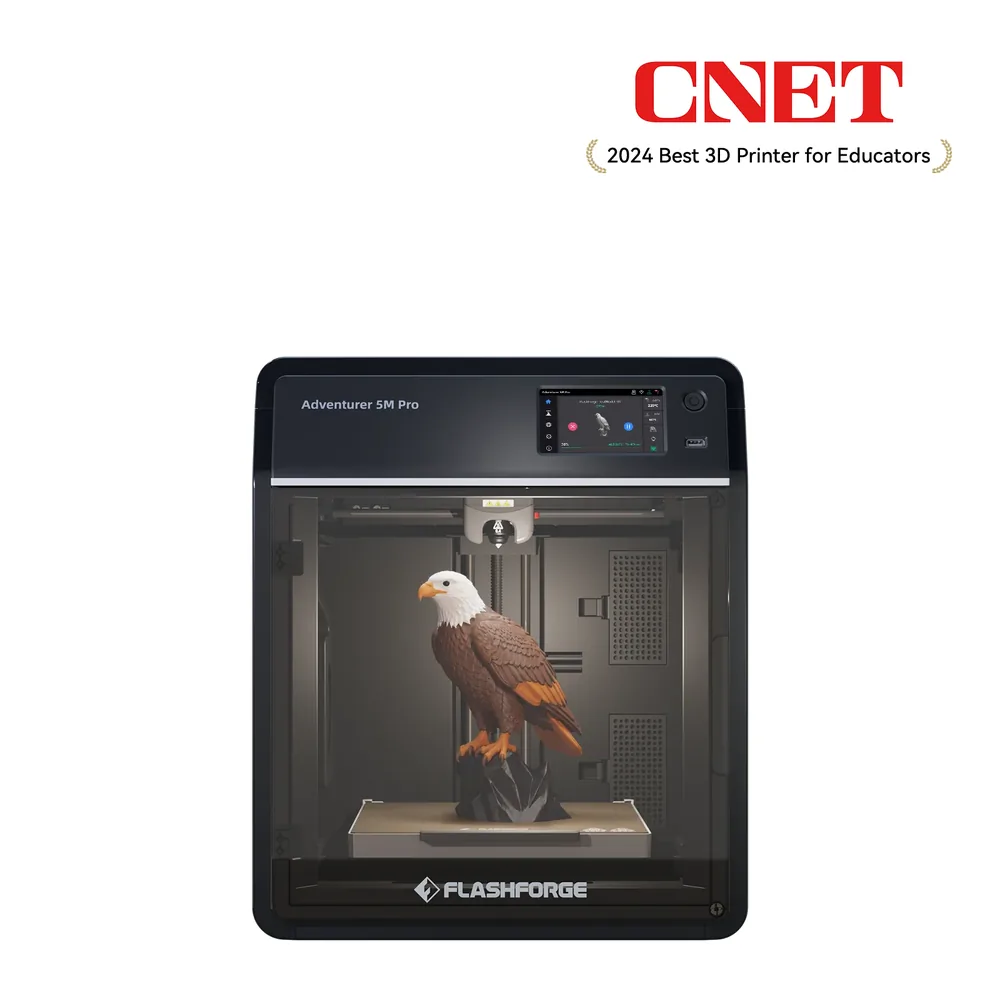

Flashforge Adventurer 5M Pro
An enclosed CoreXY FDM printer with a 220 × 220 × 220 mm nominal build volume and dual HEPA and activated-carbon filtration.
In short The Flashforge Adventurer 5M Pro is an enclosed filament (FDM) 3D printer with a 220 × 220 × 220 mm (8.7 × 8.7 × 8.7 in) build volume. Flashforge claims a 600 mm/s top speed, a 280 °C (536 °F) nozzle and a 100 °C (212 °F) bed; the printer measures 380 × 400 × 453 mm (15 × 15.7 × 17.8 in).
Documentary analysis · Not personally tested
FDM · EnclosedWhy consider it?
An enclosed chassis with dual HEPA and activated-carbon filtration, a built-in monitoring camera, a nozzle advertised up to 280°C, and a top speed advertised at 600 mm/s per Flashforge.
What to verify
The exact box contents (spare nozzles, replacement filters) aren't detailed on the manufacturer's listing; check the retailer's page before buying.
Flashforge Adventurer 5M Pro specifications
- Technology
- Filament (FDM)
- Build volume
- 220 × 220 × 220 mm (8.7 × 8.7 × 8.7 in)
- Printer dimensions
- 380 × 400 × 453 mm (15 × 15.7 × 17.8 in)
- Enclosure
- Enclosed
- Claimed top speed
- 600 mm/s
- Claimed acceleration
- 20,000 mm/s²
- Max nozzle temperature
- 280 °C (536 °F)
- Max bed temperature
- 100 °C (212 °F)
- Multicolor
- Single extruder; no stock multicolor system per Flashforge.
- Materials
- PLA, PETG, ABS, and ASA with the 0.4mm nozzle; TPU, PLA-CF, and PETG-CF with the 0.6 or 0.8mm nozzle per Flashforge.
- Screen
- 4.3-inch touchscreen
- Built-in camera
- Yes
- Connectivity
- Wi-Fi, Ethernet, USB
- Listed features
- Auto bed leveling, filament runout sensor, built-in air filtration
How much space does it need?
The Flashforge Adventurer 5M Pro measures 380 × 400 × 453 mm (15 × 15.7 × 17.8 in) for a 220 × 220 × 220 mm (8.7 × 8.7 × 8.7 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 15% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official Flashforge pages (flashforge.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Compare the Flashforge Adventurer 5M Pro
Which projects is it for?
The Adventurer 5M Pro carries over the Adventurer 5M's CoreXY chassis but encloses it in a sealed shell, with the same 220 × 220 × 220 mm nominal build volume per Flashforge. It targets homes, schools, and workshops that want to print ABS or ASA without the fumes and drafts of an open frame.
The dual HEPA and activated-carbon filtration, advertised to block a large share of particulates and volatile compounds, makes it a sensible choice for a living room or classroom rather than a garage or ventilated workshop.
Materials and setup
The nozzle heats up to 280°C per Flashforge, with the quick-detach 0.25/0.4/0.6/0.8mm nozzle system. The heated bed reaches 100°C, covering PLA and PETG with the 0.4mm nozzle.
With the 0.6 or 0.8mm nozzle, the listing adds ABS, ASA, TPU, PLA-CF, and PETG-CF: the enclosed chassis is exactly what helps with these materials, which are sensitive to ambient temperature swings.
What the bundle includes or not
Per Flashforge, the printer ships 95% pre-assembled, with the screen and filament holder still to install. The built-in camera, power-loss recovery, and auto bed leveling are part of the advertised standard equipment.
The exact box contents (replacement filters, extra nozzles) aren't detailed on the manufacturer's listing: check the retailer's page before comparing two offers.
Alternatives to compare
For a tighter budget without an enclosure or filtration, the Adventurer 5M shares the same CoreXY chassis and volume. For multicolor printing, Flashforge's AD5X adds the built-in IFS system on an open-frame base.
Against other enclosed machines on the market, the Creality K1C 2025 offers a similar volume with a carbon-fiber-reinforced nozzle, a useful comparison point before choosing.
Similar printers to compare
Sources and limits
- Source: official Flashforge pages (flashforge.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
