For a bigger resin plate in 12K

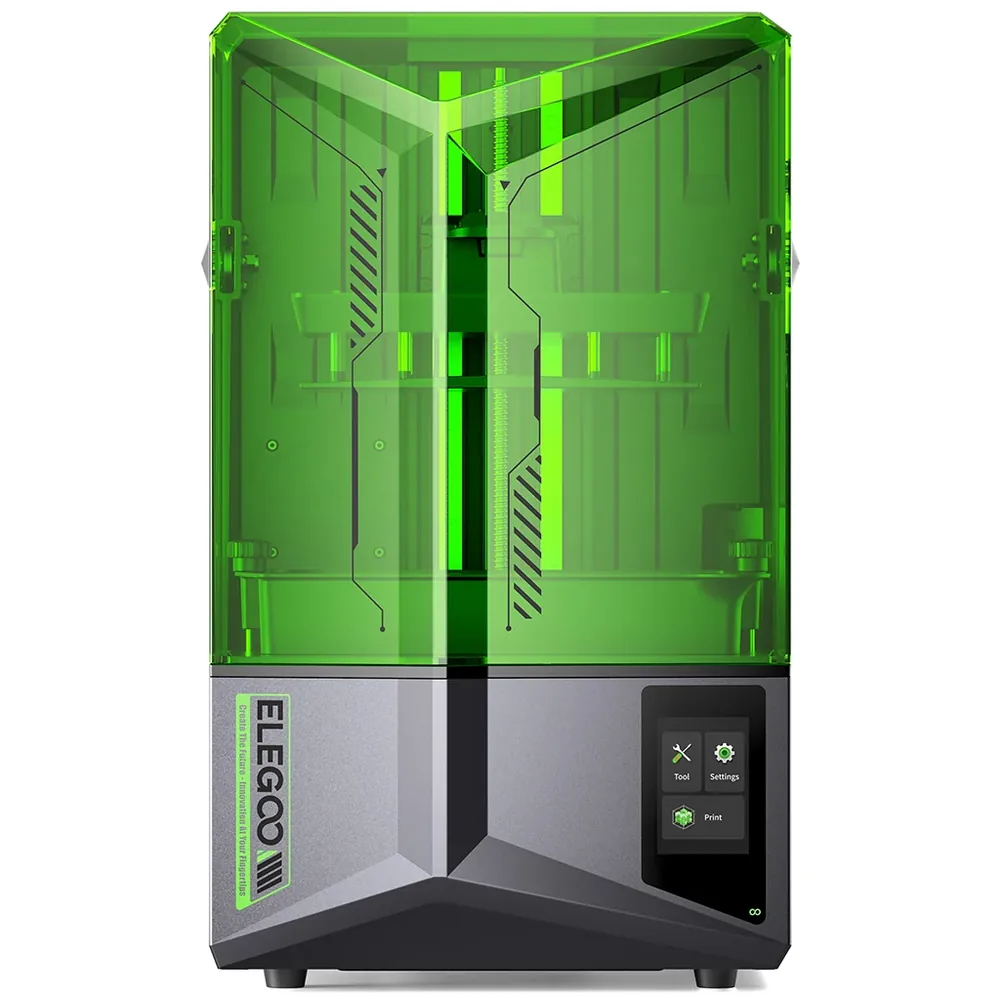

Elegoo Saturn 4
An MSLA resin printer with a monochrome 12K screen, a 218.88 × 122.88 × 220 mm build volume, and a flip-up cover per Elegoo.
In short The Elegoo Saturn 4 is a resin (MSLA) 3D printer with a 218.88 × 122.88 × 220 mm (8.6 × 4.8 × 8.7 in) build volume. Elegoo claims a 10-inch 12K LCD and up to 70 mm/h; the printer measures 327.4 × 329.2 × 548 mm (12.9 × 13 × 21.6 in) and weighs 13.5 kg (29.8 lb).
Documentary analysis · Not personally tested
Resin · MSLAWhy consider it?
A 10-inch 12K screen at 11520 × 5120 pixels, one-click automatic leveling, a smart mechanical sensor, and a dual-spout resin tank per Elegoo.
What to verify
Automatic leveling but no Wi-Fi or camera on this model; flexible build plates are not compatible per Elegoo.
Elegoo Saturn 4 specifications
- Technology
- Resin (MSLA)
- Build volume
- 218.88 × 122.88 × 220 mm (8.6 × 4.8 × 8.7 in)
- Printer dimensions
- 327.4 × 329.2 × 548 mm (12.9 × 13 × 21.6 in)
- Weight
- 13.5 kg (29.8 lb)
- Enclosure
- Protective cover
- LCD screen
- 10 in · 12K
- Claimed print speed
- 70 mm/h
- Multicolor
- One resin at a time; no automatic color or material switching.
- Materials
- Compatible 405 nm UV resins for MSLA; profile and post-processing steps specific to each product, compatible with the Elegoo Marsmate purifier.
- Screen
- 3.5-inch touchscreen
- Built-in camera
- No
- Connectivity
- USB
- Listed features
- Auto bed leveling
How much space does it need?
The Elegoo Saturn 4 measures 327.4 × 329.2 × 548 mm (12.9 × 13 × 21.6 in) for a 218.88 × 122.88 × 220 mm (8.6 × 4.8 × 8.7 in) build volume: the dashed box is the printer, the solid cube the nominal build volume, about 10% of the machine’s volume. Add room for opening the cover, handling the vat, cables and ventilation.
Source: official Elegoo pages (eu.elegoo.com, elegoo.com), checked October 6, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The Saturn 4 is an MSLA resin printer with a 10-inch monochrome 12K screen and a 218.88 × 122.88 × 220 mm build volume per Elegoo. This larger format than the Mars line suits batches of figurines, mid-size parts, and taller vertical prints thanks to the 220 mm of headroom.
One-click automatic leveling and a pre-print self-check, advertised by Elegoo, keep setup simple despite the larger plate.
Materials and setup
The printer runs compatible 405 nm UV resins, each with its own profile and post-processing steps per Elegoo. The COB light source paired with a Fresnel collimating lens aims for 92% light uniformity advertised across the entire build area.
The dual-spout resin tank makes pouring and draining easier per Elegoo, but Elegoo specifies that the Saturn 4 is not compatible with flexible build plates, which risk throwing off automatic detection and damaging the LCD screen.
What the bundle includes or not
The box includes the printer, build plate, resin tank, a USB drive, a mask, and gloves per Elegoo's "What's In Box" list, with further items not detailed, 6 and up in total. The exact contents should be checked on the retailer's listing before buying.
The flip-up cover makes the build plate easier to access, but the printer has neither Wi-Fi nor a built-in monitoring camera per the spec sheet.
Alternatives to compare
For a faster print speed on the same screen format, the Saturn 4 Ultra adds tilt-release technology and an AI camera. For a tighter budget on a smaller plate, the Mars 5 remains an entry-level option.
The resin printer buying guide and the resin materials guide help prepare post-processing for this plate size.
Similar printers to compare
Sources and limits
- Source: official Elegoo pages (eu.elegoo.com, elegoo.com), checked October 6, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
