Comparing a faster 12K resin format

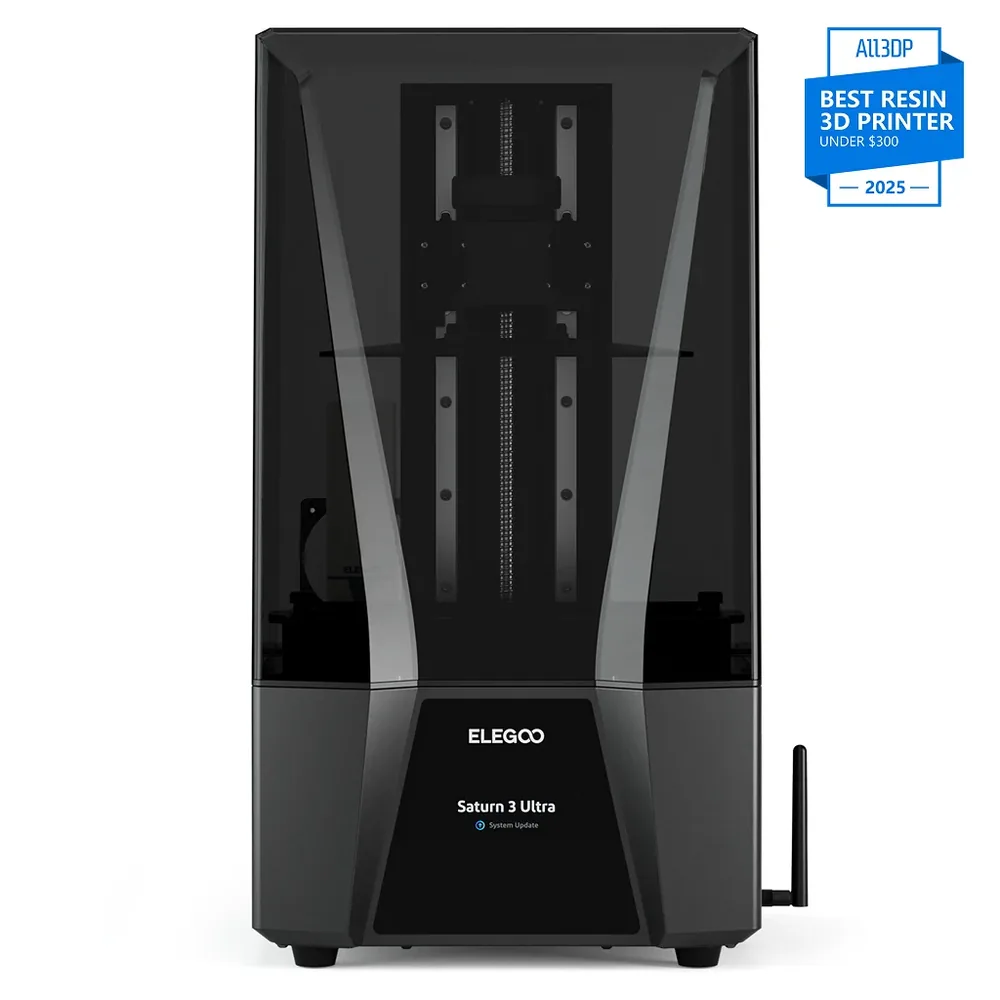

Elegoo Saturn 3 Ultra
An MSLA resin printer with a 10-inch 12K mono screen, a 218.88 × 122.88 × 260 mm build volume, and a speed advertised up to 150 mm/h per Elegoo.
In short The Elegoo Saturn 3 Ultra is an resin (MSLA) 3D printer with a 218.88 × 122.88 × 260 mm (8.6 × 4.8 × 10.2 in) build volume. Elegoo claims a 10-inch 12K LCD, 19 µm XY resolution and up to 150 mm/h; the printer measures 305.9 × 273 × 562.5 mm (12 × 10.7 × 22.1 in) and weighs 12 kg (26.5 lb).
Documentary analysis · Not personally tested
Resin · MSLAWhy consider it?
A 10-inch 12K mono screen at 11520 × 5120 pixels, a COB light source with a reflector, a Linux system with 4 GB of ROM, 4-point leveling, and an all-metal body per Elegoo.
What to verify
The 150 mm/h top speed assumes Elegoo's Rapid Standard Resin and the included ACF film; other resins may print more slowly. Exact bundle contents should be checked on the retailer's listing.
Elegoo Saturn 3 Ultra specifications
- Technology
- Resin (MSLA)
- Build volume
- 218.88 × 122.88 × 260 mm (8.6 × 4.8 × 10.2 in)
- Printer dimensions
- 305.9 × 273 × 562.5 mm (12 × 10.7 × 22.1 in)
- Weight
- 12 kg (26.5 lb)
- Enclosure
- Protective cover
- LCD screen
- 10 in · 12K
- XY resolution
- 19 µm
- Claimed print speed
- 150 mm/h
- Multicolor
- One resin at a time; no automatic color or material switching.
- Materials
- Compatible 405 nm UV resins for MSLA, including Elegoo's Rapid Standard Resin paired with the included ACF film for the top advertised speed.
- Connectivity
- Wi-Fi, USB
- Listed features
- Built-in air filtration
How much space does it need?
The Elegoo Saturn 3 Ultra measures 305.9 × 273 × 562.5 mm (12 × 10.7 × 22.1 in) for a 218.88 × 122.88 × 260 mm (8.6 × 4.8 × 10.2 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 15% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official Elegoo pages (elegoo.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The Saturn 3 Ultra targets users who want 12K resolution on a 218.88 × 122.88 × 260 mm build volume per Elegoo, suited to detailed miniatures, game pieces, and regular batches of small parts.
The advertised speed of up to 150 mm/h, reached with Elegoo's Rapid Standard Resin and the included ACF release film, targets users who print often and want to cut the wait between batches.
Materials and setup
The 10-inch 12K mono screen at 11520 × 5120 pixels targets XY accuracy advertised at 19 × 24 µm per Elegoo, with a COB light source paired with a reflector to reduce light dispersion and keep printed surfaces smooth.
The built-in Linux system with 4 GB of ROM handles WiFi transfer (2.4G and 5G, 6-10 Mbps) via a detachable antenna, for a more stable workflow than a typical embedded system per Elegoo.
What the bundle includes or not
Elegoo advertises a plug-in air purifier, an all-metal body for durability, and 4-point leveling that only needs one initial setup. Exact accessories included (starter resin, spare ACF film) should be checked on the retailer's listing.
The low-release-force ACF film, with a frosted side and a smooth side, is presented by Elegoo as the key part for reaching the advertised top speed with Rapid Standard Resin.
Alternatives to compare
For a more compact 9K screen, the Mars 4 is a more affordable option within Elegoo's lineup. For professional large-format resin, the Form 4L targets heavier use.
The resin printer buying guide helps compare the Saturn 3 Ultra's 12K resolution against 9K or 16K screens based on the detail level you need.
Similar printers to compare
Sources and limits
- Source: official Elegoo pages (elegoo.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
