For a large 6K format with height

Elegoo Jupiter

An MSLA resin printer with a 12.8-inch monochrome 6K screen, a 277.85 × 156.26 × 300 mm build volume, and an XY resolution advertised at 51 μm per Elegoo.

Resin277.85 × 156.26 × 300 mmCover

Documentary analysis · Not personally tested

See the manufacturer and sellers

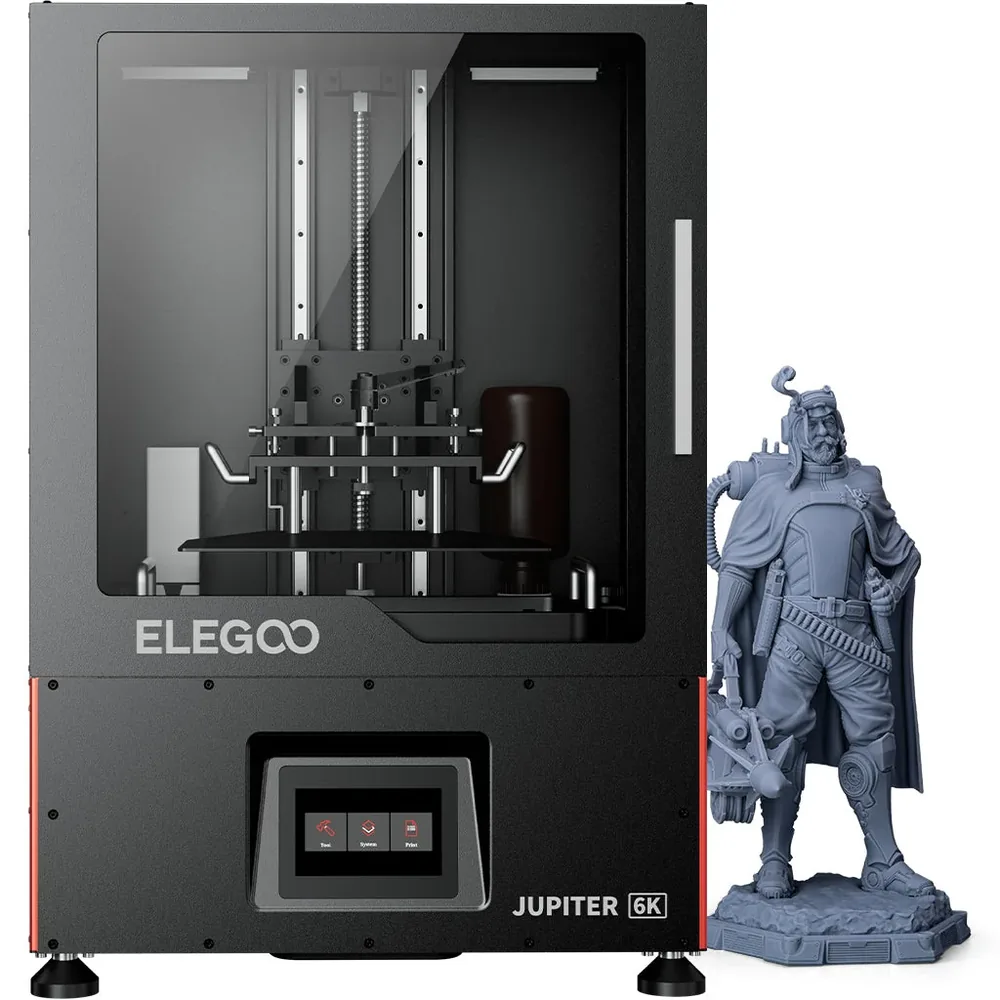

Elegoo Jupiter, manufacturer image — Image provided by Elegoo. Equipment shown does not establish the contents of the selected bundle.

Specification sources reviewed 2026-09-12. These are manufacturer claims, not measurements by Find My 3D Printer.

Why consider it?

A monochrome 6K screen at 5,448 × 3,064 pixels on 12.8 inches, a 300 mm print height, and a 5-inch touch panel for control per Elegoo.

What to verify

An XY resolution advertised at 51 μm, coarser than compact 4K or 12K screens, worth weighing against the level of detail you need. Check the exact bundle contents on the retailer's listing.

The specifications that matter

Process: Resin
Nominal build volume: 277.85 × 156.26 × 300 mm
Enclosure: Protective cover, not a thermal chamber
Multicolor: One resin at a time; no automatic color or material switching.
Materials: Compatible 405 nm UV resins for MSLA; profile and post-processing steps specific to each product per Elegoo.

Allow room for supports and the chosen orientation. Confirm the exact nozzle, feeder, included accessories and installation clearance against the manual and seller’s listing.

Which projects is it for?

The Jupiter targets large-format printing with a 277.85 × 156.26 × 300 mm volume per Elegoo, combining a wide plate with a 300 mm height suited to busts, tall parts, or several figurines spread across the screen at once.

The 12.8-inch monochrome 6K screen covers a much larger area than a compact format, at the cost of an XY resolution advertised at 51 μm rather than the finer values of smaller 4K screens, a trade-off worth weighing against how much fine surface detail a project needs.

Materials and setup

The printer runs compatible 405 nm UV resins for MSLA, each with its own profile and post-processing steps per Elegoo. The large plate typically needs more resin per plate, a point worth factoring into the consumables budget.

A 5-inch touch panel controls the machine independently of the 6K curing screen, simplifying parameter setup without a separate computer.

What the bundle includes or not

The box contents (resin vat, build plate, cables, cleaning accessories) should still be checked on the chosen retailer's listing, since Elegoo doesn't detail this list the same way across sales regions or bundle offers.

The Jupiter's LCD screen is listed as a separately available spare part at Elegoo, a useful detail to know when planning maintenance on a machine this size.

Alternatives to compare

With a similar 6K screen and plate, the same lineup's Jupiter SE adds an automatic resin feeding and recycling system per Elegoo. For a similar format with a 4K screen, the Saturn 4 is worth comparing.

The resin printer buying guide helps weigh this large 6K format against smaller but sometimes sharper screens before comparing prices.

Frequently asked questions

What's the difference from the Jupiter SE?

Both share a similar 6K screen and plate per Elegoo, but the Jupiter SE adds an automatic resin feeding and recycling system that the base Jupiter doesn't have; compare both listings before buying.

Does the large plate use more resin?

Yes, a plate this size typically needs more resin per full print than a compact format, a point worth factoring into the consumables budget depending on the volume of parts printed.

Is the LCD screen easy to replace?

Elegoo offers the Jupiter's LCD screen as a separate spare part, allowing a replacement without swapping the whole machine if the curing screen wears out.

Sources and limits

We have not measured noise, real printing speed, accuracy or reliability. Manufacturer images do not establish the contents of the selected bundle.
