For industrial large-format 3D printing

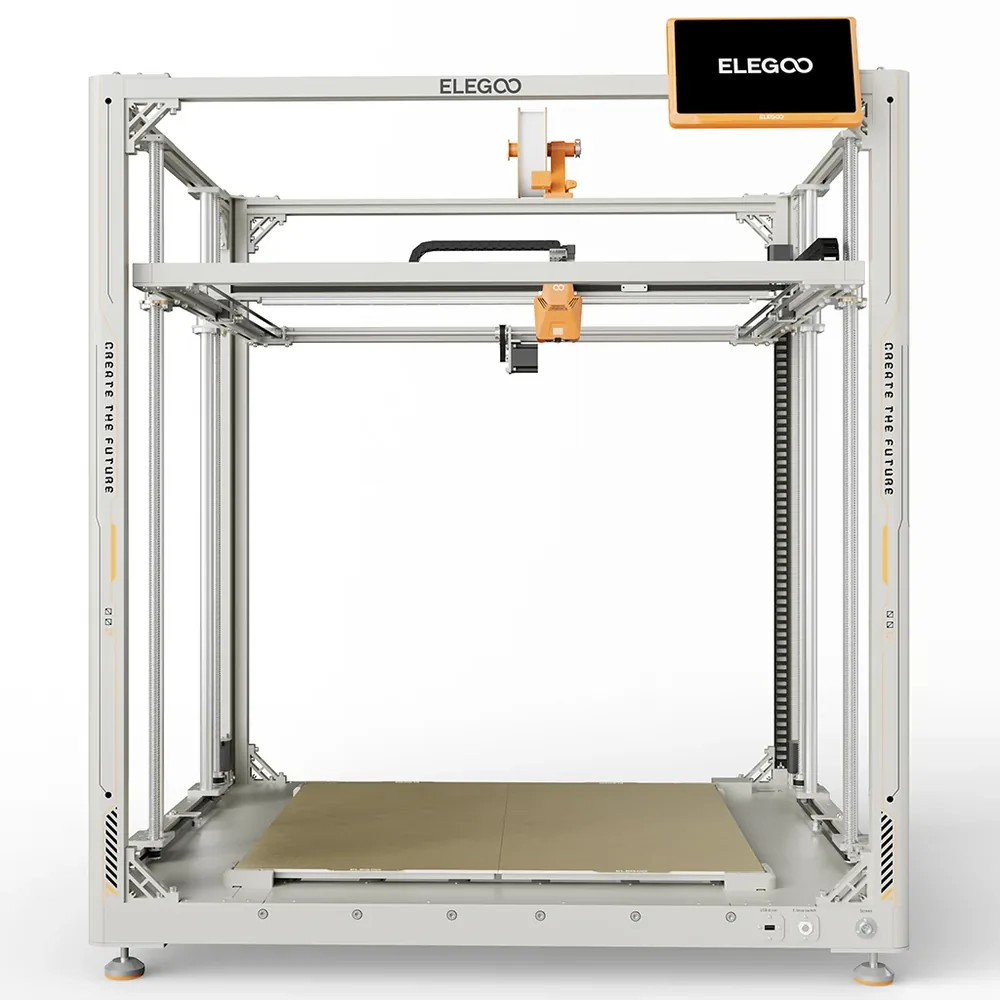

Elegoo OrangeStorm Giga
An open-frame industrial FDM printer with an 800 × 800 × 1000 mm nominal build volume and up to four simultaneous nozzles per Elegoo.
In short The Elegoo OrangeStorm Giga is an open-frame filament (FDM) 3D printer with a 800 × 800 × 1,000 mm (31.5 × 31.5 × 39.4 in) build volume. Elegoo claims a 300 mm/s top speed, a 300 °C (572 °F) nozzle and a 100 °C (212 °F) bed; the printer measures 1,224 × 1,164 × 1,425 mm (48.2 × 45.8 × 56.1 in) and weighs 104 kg (229.3 lb).
Documentary analysis · Not personally tested
FDM · Open frameWhy consider it?
An 800 × 800 × 1000 mm volume, four independent 410 × 410 mm PEI plates heated separately, and up to four nozzles for printing several models or colors in parallel per Elegoo.
What to verify
Advertised net weight of 104 kg shipped in several crates by freight; each extra nozzle adds 100W of power draw, up to 1,830W with four nozzles.
Elegoo OrangeStorm Giga specifications
- Technology
- Filament (FDM)
- Build volume
- 800 × 800 × 1,000 mm (31.5 × 31.5 × 39.4 in)
- Printer dimensions
- 1,224 × 1,164 × 1,425 mm (48.2 × 45.8 × 56.1 in)
- Weight
- 104 kg (229.3 lb)
- Enclosure
- Open frame
- Claimed top speed
- 300 mm/s
- Claimed acceleration
- 5,000 mm/s²
- Max nozzle temperature
- 300 °C (572 °F)
- Max bed temperature
- 100 °C (212 °F)
- Multicolor
- Up to four print heads as an option, each with its own color or material; the multi-nozzle kit is sold separately from the single-nozzle base unit.
- Materials
- PLA, PETG, TPU, and nylon with a nozzle advertised up to 300°C; a 0.6 mm nozzle is included, with 0.4/0.8/1.0 mm options.
- Screen
- 10.1-inch touchscreen
- Built-in camera
- No
- Connectivity
- USB, Ethernet, Wi-Fi
- Listed features
- Auto bed leveling, filament runout sensor
How much space does it need?
The Elegoo OrangeStorm Giga measures 1,224 × 1,164 × 1,425 mm (48.2 × 45.8 × 56.1 in) for a 800 × 800 × 1,000 mm (31.5 × 31.5 × 39.4 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 32% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official Elegoo pages (eu.elegoo.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The OrangeStorm Giga is an open-frame FDM printer built for very large format work, with an 800 × 800 × 1000 mm nominal build volume per Elegoo. It targets oversized parts that, on a standard printer, would need to be split into sections and glued back together: large props, set pieces, furniture, or bulky prototypes.
The advertised speed reaches 300 mm/s (150 mm/s recommended), more modest than on the Neptune 4 line but consistent with the gantry size and the machine's 104 kg net weight.
Materials and setup
The brass nozzle advertises up to 300°C, with a 0.6 mm nozzle included and 0.4, 0.8, and 1.0 mm options. Elegoo advertises compatibility with PLA, PETG, TPU, and nylon, with a dual-gear direct extruder and a titanium-alloy throat.
Up to three extra print heads can be added on the X axis to print up to four identical models at once, each in a different color of the same material per Elegoo; this multi-nozzle kit is sold separately from the single-nozzle base version.
What the bundle includes or not
The box includes the printer, print head, screen, two leveling plates, and spool holder arm per Elegoo's "What's In Box" list, with further items not detailed, 12 and up in total. The package ships in multiple crates by road freight, worth planning for on delivery.
Extra print heads, the camera, and the PEI magnetic platform kit are not included by default and are sold as separate accessories per the product page.
Alternatives to compare
For an already generous format that's easier to set up, the Neptune 4 Max covers 420 × 420 × 480 mm on a lighter Klipper architecture. The Centauri Carbon 2 is the closer Elegoo comparison for multicolor work on a more conventional format.
The functional parts guide helps assess whether a format this large is actually needed before investing in a machine of this size.
Similar printers to compare
Sources and limits
- Source: official Elegoo pages (eu.elegoo.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
