For more speed, same footprint

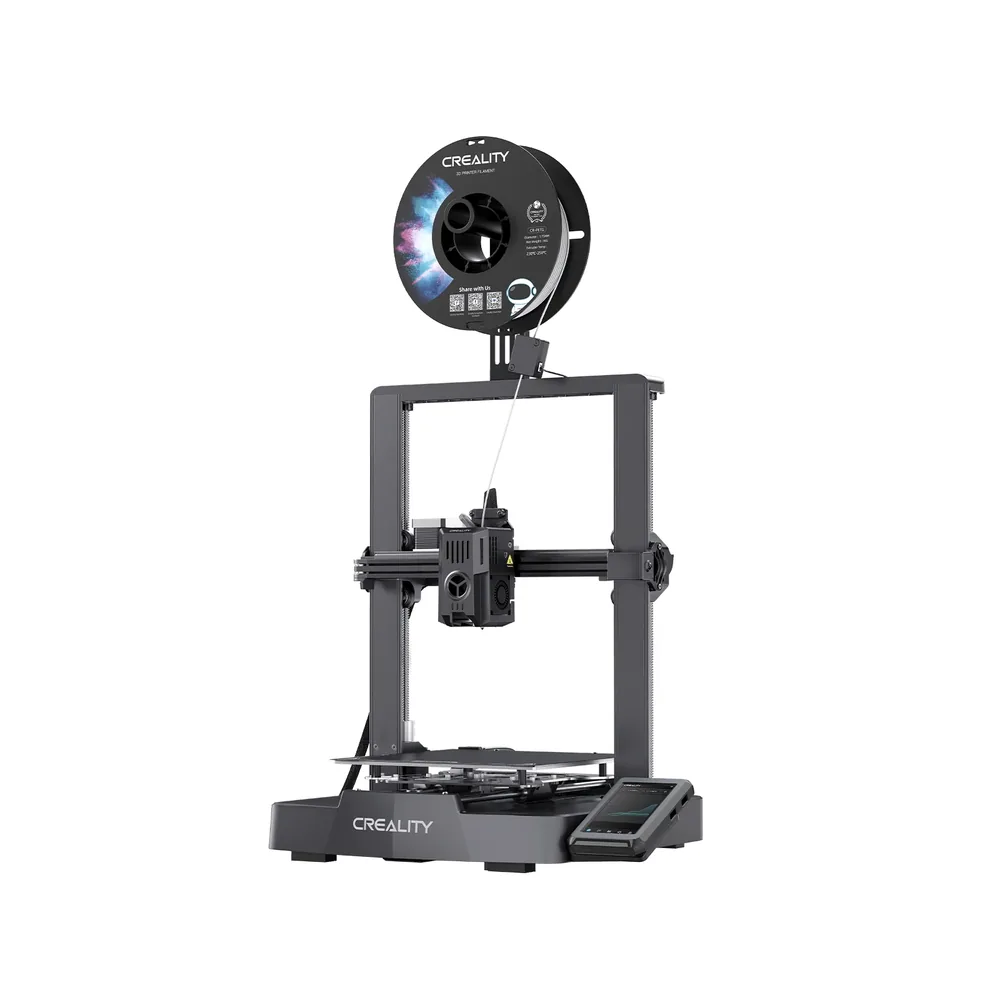

Creality Ender-3 V3 KE
An open-frame FDM printer running Klipper, with a 220 × 220 × 240 mm nominal build volume and a nozzle rated up to 300°C.
In short The Creality Ender-3 V3 KE is an open-frame filament (FDM) 3D printer with a 220 × 220 × 240 mm (8.7 × 8.7 × 9.4 in) build volume. Creality claims a 500 mm/s top speed, a 300 °C (572 °F) nozzle and a 100 °C (212 °F) bed; the printer measures 433 × 366 × 490 mm (17 × 14.4 × 19.3 in) and weighs 7.8 kg (17.2 lb).
Documentary analysis · Not personally tested
FDM · Open frameWhy consider it?
Klipper firmware, a direct-drive extruder, and a linear rail on the X axis for a top speed advertised at 500 mm/s.
What to verify
Open frame: ABS and ASA call for a ventilated, draft-free room, since there is no enclosed chamber.
Creality Ender-3 V3 KE specifications
- Technology
- Filament (FDM)
- Build volume
- 220 × 220 × 240 mm (8.7 × 8.7 × 9.4 in)
- Printer dimensions
- 433 × 366 × 490 mm (17 × 14.4 × 19.3 in)
- Weight
- 7.8 kg (17.2 lb)
- Enclosure
- Open frame
- Claimed top speed
- 500 mm/s
- Claimed acceleration
- 8,000 mm/s²
- Max nozzle temperature
- 300 °C (572 °F)
- Max bed temperature
- 100 °C (212 °F)
- Multicolor
- No multicolor system included; a Creality filament system is offered as a separate accessory.
- Materials
- Hyper PLA, PETG, ABS, TPU (95A) and ASA per Creality's profiles.
- Screen
- 4.3-inch screen
- Built-in camera
- No
- Connectivity
- Wi-Fi, USB
- Listed features
- Auto bed leveling, filament runout sensor
How much space does it need?
The Creality Ender-3 V3 KE measures 433 × 366 × 490 mm (17 × 14.4 × 19.3 in) for a 220 × 220 × 240 mm (8.7 × 8.7 × 9.4 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 15% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official Creality pages (creality.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects is it for?
The Ender-3 V3 KE is an open-frame FDM printer with a 220 × 220 × 240 mm nominal build volume per Creality. It runs Klipper firmware and pairs a direct-drive extruder with a linear rail on the X axis, for a top speed advertised at 500 mm/s. It suits makers who want faster parts than a standard Ender-3 V3 SE without changing the bed footprint.
The nozzle heats up to an advertised 300°C thanks to a 60 W ceramic heater, which opens the door to more technical filaments than PLA while staying on an open frame.
Materials and configuration
Creality lists compatibility with Hyper PLA, PETG, ABS, TPU (95A), and ASA. That wide material range relies mostly on the high nozzle temperature rather than on any enclosure, which this model does not have.
A Creality filament system is mentioned as a compatible accessory rather than stock equipment: check the retailer's listing to see whether it's included in your chosen offer before counting on multicolor printing out of the box.
What the bundle includes or not
Creality's page highlights auto-leveling, one-tap self-test, and automatic filament loading, controllable from the touchscreen or the WiFi app. The exact box contents (accessories, PEI plate, spare parts) should still be checked on the retailer's listing, since they can vary by offer.
The open-source Klipper firmware, with files published openly, sets this machine apart from other models in the V3 lineup that run more conventional firmware.
Alternatives to compare
For a more accessible price at a similar footprint, the Ender-3 V3 SE stays the simplest model in the lineup. For a noticeably larger plate with the same CoreXZ architecture, the Ender-3 V3 and Ender-3 V3 Plus are worth comparing.
The Creality page covers the rest of the lineup, and the PLA vs PETG guide helps pick the first material to try on this multi-filament machine.
Similar printers to compare
Sources and limits
- Source: official Creality pages (creality.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
