For guided resin printing with adjustable profiles

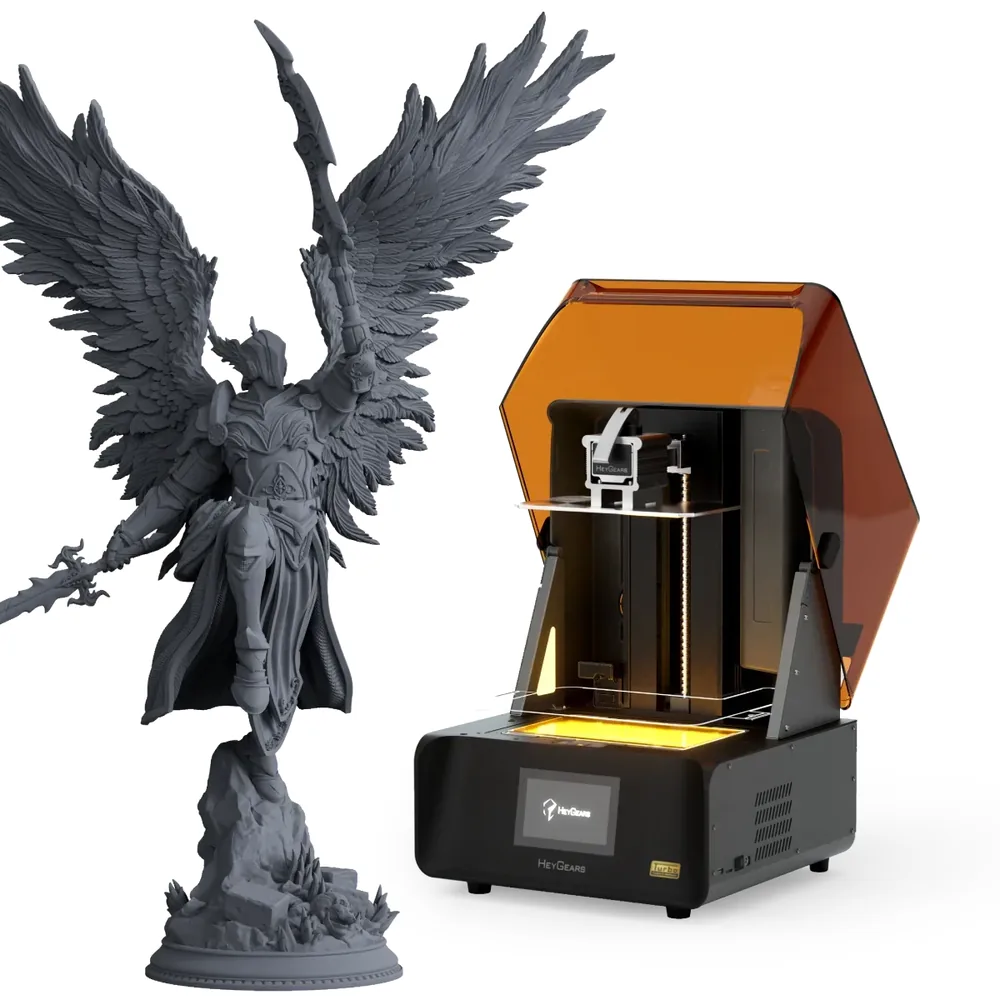

HeyGears Reflex RS Turbo
A 222 × 122 × 228 mm resin printer with an Amber Screen, 29.7 µm pixels and an adjustable mode for third-party resins, according to HeyGears.
In short The HeyGears Reflex RS Turbo is a resin (MSLA) 3D printer with a 222 × 122 × 228 mm (8.7 × 4.8 × 9 in) build volume. HeyGears claims a 10.3-inch 8K LCD and 29.7 µm XY resolution; the printer measures 380 × 360 × 584 mm (15 × 14.2 × 23 in) and weighs 20 kg (44.1 lb).
Documentary analysis · Not personally tested
Resin · MSLAWhy consider it?
An Amber Screen with a claimed 566:1 contrast ratio, a C5 ball-screw Z axis and assisted preparation. Open Material mode enables settings for third-party resins.
What to verify
The Pulsing Release Module, heated tank and curing station depend on the selected bundle. Z-axis positioning figures are not finished-part accuracy.
HeyGears Reflex RS Turbo specifications
- Technology
- Resin (MSLA)
- Build volume
- 222 × 122 × 228 mm (8.7 × 4.8 × 9 in)
- Printer dimensions
- 380 × 360 × 584 mm (15 × 14.2 × 23 in)
- Weight
- 20 kg (44.1 lb)
- Enclosure
- Protective cover
- LCD screen
- 10.3 in · 8K
- XY resolution
- 29.7 µm
- Multicolor
- One resin at a time; change resin between jobs to change colors.
- Materials
- HeyGears resins and compatible third-party formulations through Open Material mode; validate profiles.
- Connectivity
- USB, Wi-Fi
- Listed features
- Auto bed leveling
How much space does it need?
The HeyGears Reflex RS Turbo measures 380 × 360 × 584 mm (15 × 14.2 × 23 in) for a 222 × 122 × 228 mm (8.7 × 4.8 × 9 in) build volume: the dashed box is the printer, the solid cube the largest theoretical part, about 8% of the machine’s volume. Add room for the spool or multicolor unit, cables and ventilation.
Source: official HeyGears pages (store.heygears.com), checked September 28, 2026. Manufacturer claims, not our measurements. Build volume is nominal: orientation, supports and reserved zones can reduce the usable space.
Which projects fit?
The Reflex RS Turbo targets miniatures, detailed prototypes and batches of small parts within a 222 × 122 × 228 mm build volume. Its appeal is the combination of a high-contrast display and assisted print preparation. Results still depend on the model, support placement and resin rather than the machine specification alone.
HeyGears lists 29.7 µm pixels and layer heights from 30 to 100 µm. The advertised Z-axis positioning specification describes the motion system. It should not be read as a guaranteed tolerance across every dimension of a finished print.
Selecting resin
The printer uses a 405 nm light source. HeyGears resins have an associated profile ecosystem, while Open Material mode provides adjustable settings for other compatible formulations. This requires validation: the option does not mean that any bottle will work immediately without calibration. Start with a small test before preparing a full batch.
When comparing workflows, check which profiles are available for your intended use, how easily resin can be sourced and what post-processing it requires. A material aimed at detailed miniatures does not automatically meet the same requirements as one intended for functional prototypes.
Printer and accessories
The standard printer includes its resin tank and build plate. The Pulsing Release Module and washing or curing equipment are accessories or parts of specific bundles. A heated tank also needs to be confirmed in the configuration you select. Match each offer to its actual contents before comparing it with another retailer.
Allow space to open the cover, remove the plate and handle printed parts afterward. USB and WiFi offer different file transfer options depending on your workspace. Check any resin bottles shown in a promotional image against the selected bundle rather than assuming they come with the base printer.
What to compare
The Reflex RS provides a reference for the earlier version's features. The GK3 Pro is another fine-detail option with a different light source. Compare the complete setup, profile availability and replacement consumables instead of relying on display resolution alone.
Similar printers to compare
Sources and limits
- Source: official HeyGears pages (store.heygears.com), checked September 28, 2026. Manufacturer claims, not our measurements.
- How we assess specifications
We have not measured noise, real printing speed, accuracy or reliability, so none of these is rated here.
